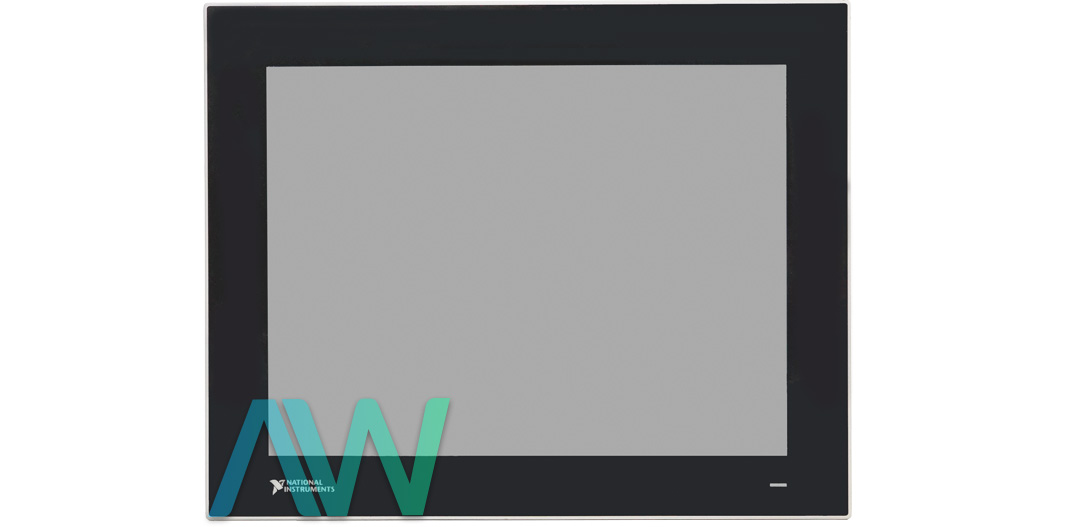

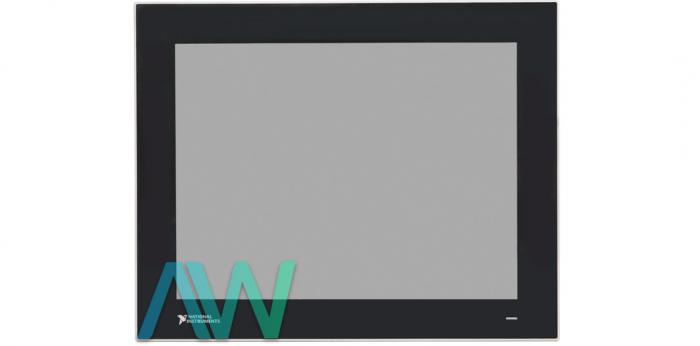

National Instruments TPC-2230 Touch Panel Computer
The National Instruments TPC-2230 (Part Numbers: 784250-01, 784251-01, and 784252-01) is a Touch Panel Computer. The only difference between the three versions of this Touch Panel Computer is the size. Part number 784250-01 is 6.5 in. Part number 784251-01 is 12.1 in. Lastly, part number 784252-01 is 15 in. This Human Machine Interface (HMI) is based on an x86 platform. The NI TPC-2230 has an Intel Atom dual core processor, which is normally utilized to install human machine interface applications in rough environments. The end user can combine the TPC-2230 Touch Panel Computer additionally has a wide operating temperature range from -20 to 60 °C.

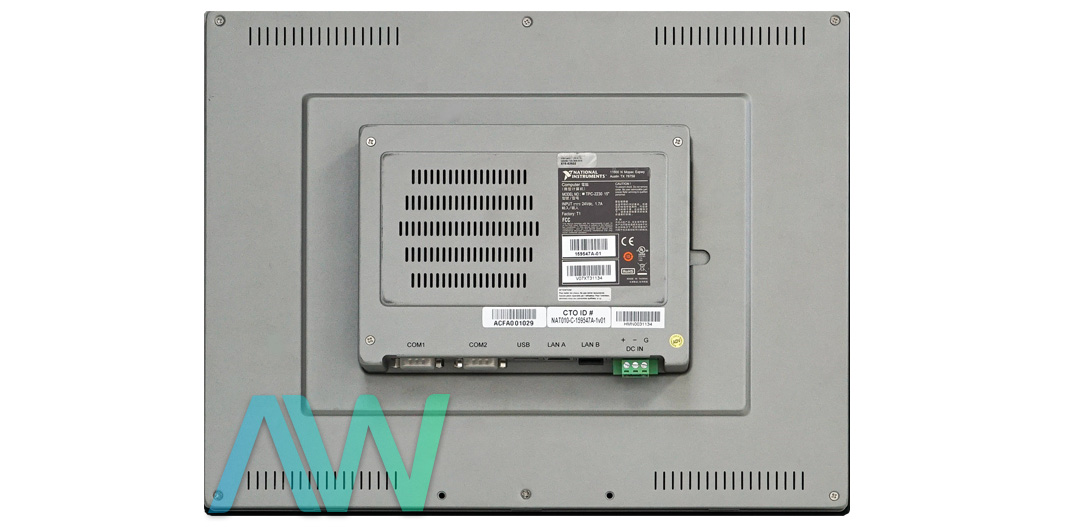

The NI TPC-2230 has compatibility with complex interfaces with durability. This Touch Panel Computer is fanless. Since it has a low power processor, it does not require a cooling fan. The National Instruments TPC-2230 is great for I/O interfacing while communicating with other devices. These interfaces include Gigabit Ethernet, USB 2.0 and USB 3.0 ports, and two serial ports (RS232 and RS232/422/485). The TPC-2230 contains a power connector port as well. This Touch Panel Computer has Windows Embedded Standard 7 (WES7) support.
While setting up the TPC-2230 Touch Panel Computer, the user should first check the required items carefully. The required items include: the TPC-2230, six 6.5 inch screws, eight 12.1 inch and 15 inch clamps, six 6.5 inch clamps, eight 12.1 inch and 15 inch screws, a power connector with 3 pins, one cable for grounding (earth cable), and a human machine interface universal serial bus. The touchscreen should also be calibrated prior to use.
| Model | TPC-2230 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 784250-01, 784251-01, and 784252-01 |
| Type | Touch Panel Computer |
| Size | 6.5 in., 12.1 in., or 15 in. |
| CPU | Intel Atom Processor E3827 1.75 GHz |
| RAM | 4 GB DDR3L 1600MHz SO-DIMM |
| Display Type | TFT LED LCD |
| Dimensions | 6.5 in: 7.83 × 5.98 × 2.32 in., 12.1 in: 12.28 × 9.37 × 2.25 in., 15 in: 15.09 × 12.10 × 2.41 in. |
| Weight | 6.5 in: 3.3 lb, 12.1 in: 5.5 lb, 15 in: 8.6 lb. |
| Warranty | 2-3 Year Warranty |
| TPC-2230 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for TPC-2230:
National Instruments TPC-2230 Frequently Asked Questions
Question: What is the maximum resolution for the LCD display of the TPC-2230?
Answer: The maximum resolution of the display differs depending on the size. The 6.5 inch display has a max resolution of 640 × 480 XGA, while the 12.1 in. and 15 in. displays measure 1024 × 768 XGA and 1024 × 768 XGA, respectively.
Question: What type of touchscreen does the TPC-2230 have?
Answer: The Touch Panel Computer has a resistive, 5-wire touch type that has a base of tempered glass.
Question: What is the lifespan of the touchscreen?
Answer: The touchscreen of the TPC-2230 can withstand, at a single point, up to 1 million touches.
Question: What type of backlight does the TPC-2230 have?
Answer: The computer utilizes an LED backlight with a lifespan of 50,000 hours.
