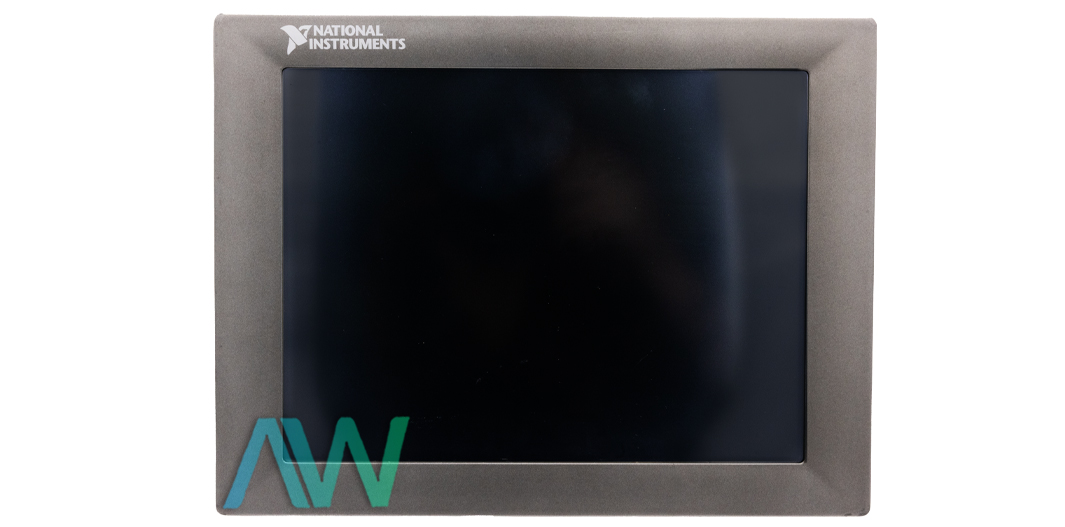

National Instruments TPC-2512 Touch Panel Computer
Featured with a 500 MHz Processor and Ethernet connectivity, the NI TPC-2512 (Part Number: 780541-01) is an industrial grade Touch Panel Computer from National Instruments. This model has a 12.1 in. color LCD touch screen. The NI TPC-2512 is certified to provide seamless integration with the LabVIEW Touch Panel Module. This Touch Panel Computer’s compatibility with a variety of control platforms makes it an ideal human machine interface (HMI). The NI TPC-2512 is fully compatible with Compact FieldPoint, PXI real-time, CompactRIO, and other National Instruments Single-Board RIOs.

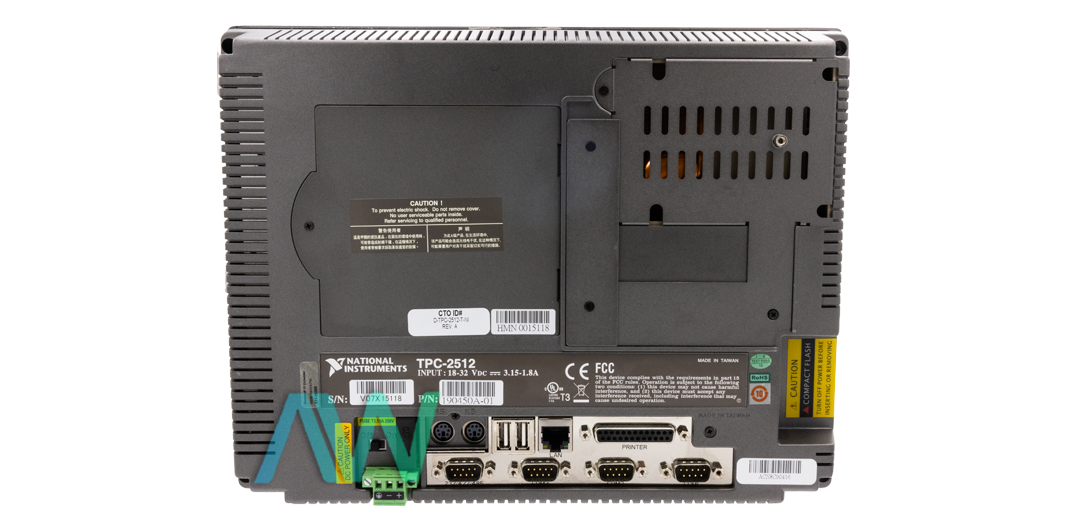

This Touch Panel Computer features a SVGA TFT LCD that is designed to provide users with crystal clear graphics or schematics. The NI TPC-2512 comes with a robust I/O interface for straightforward and reliable communication with other industrial devices. The various connectivity options include: two USB (Universal Serial Bus) ports, a parallel port, an Ethernet port, four serial ports, two PS/2 ports, and one IDE channel. The NI TPC-2512 has an integrated watchdog timer to ensure safe operations.
The watchdog timer incorporated in this device can be configured to take corrective measures in case of a control system or control program failure. The IDE connector provided in this Touch Panel Computer supports one CompactFlash socket and a hard drive. The high-performance LCD incorporated in the TPC-2512 can operate at a maximum resolution of 800 x 600 pixels and can produce luminance of 340 cd/m2. The TPC-2512 offers a board viewing angle of 100° and its contrast ratio remains around 300.
The TPC-2512 has been announced as Obsolete by National Instruments (NI), but the Touch Panel Computer will still be available for purchase and repairs in perpetuity with Apex Waves.
| Model | TPC-2512 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 780541-01 |
| Type | Touch Panel Computer |
| Processor | 500 MHz GX3 LX800 |
| Memory | 512 MB DDR SDRAM |
| Display Size | 12.1 inch (Diagonal) |
| Display Type | SVGA TFT LCD |
| LCD Resolution | 800 × 600 SVGA, Maximum |
| Colors | 256,000 Maximum |
| Backlight | 2 CCFL |
| Touchscreen Controller | USB Interface |
| Cutout Dimensions | 302 × 228 mm (Suggested) |
| Dimensions | 12.24 by 9.33 by 1.97 in. |
| Weight | 4.1 kg w/o HDD |
| Warranty | 2-3 Year Warranty |
| TPC-2512 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for TPC-2512:
National Instruments TPC-2512 Frequently Asked Questions
Question: What is the lifespan of the LCD backlight in the TPC-2512?
Answer: The LCD backlight has a lifespan of 50,000 hours.
Question: What type of touch does the TPC-2512 Computer use?
Answer: This Touch Panel Computer utilizes Resistive Touch.
Question: What is the input voltage rating of the device?
Answer: The input voltage rating is 18 to 32 VDC.
Question: What type of CPU does the TPC-2512 use?
Answer: The device uses a GeodeLink Control Processor LX800 CPU
