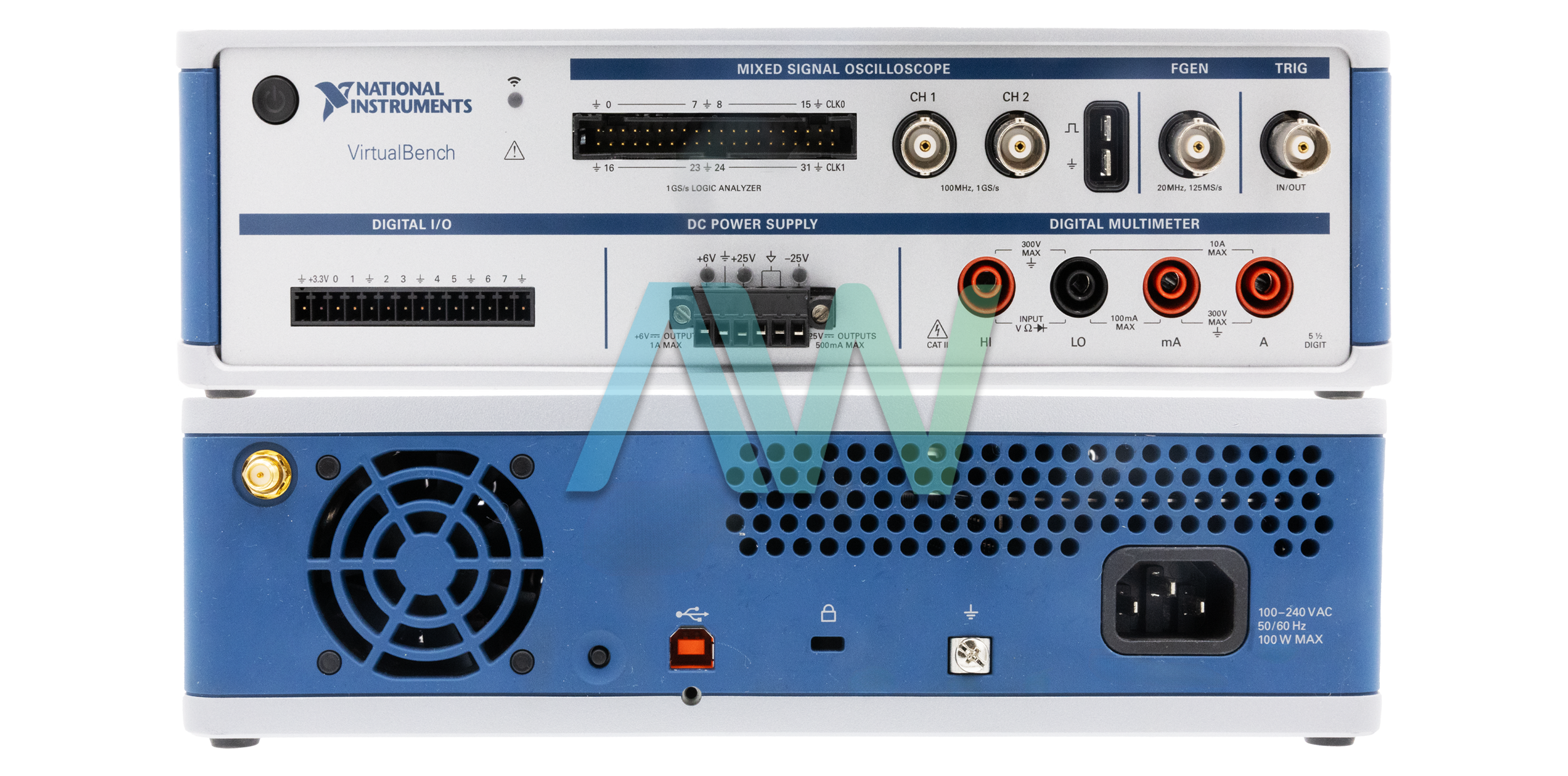

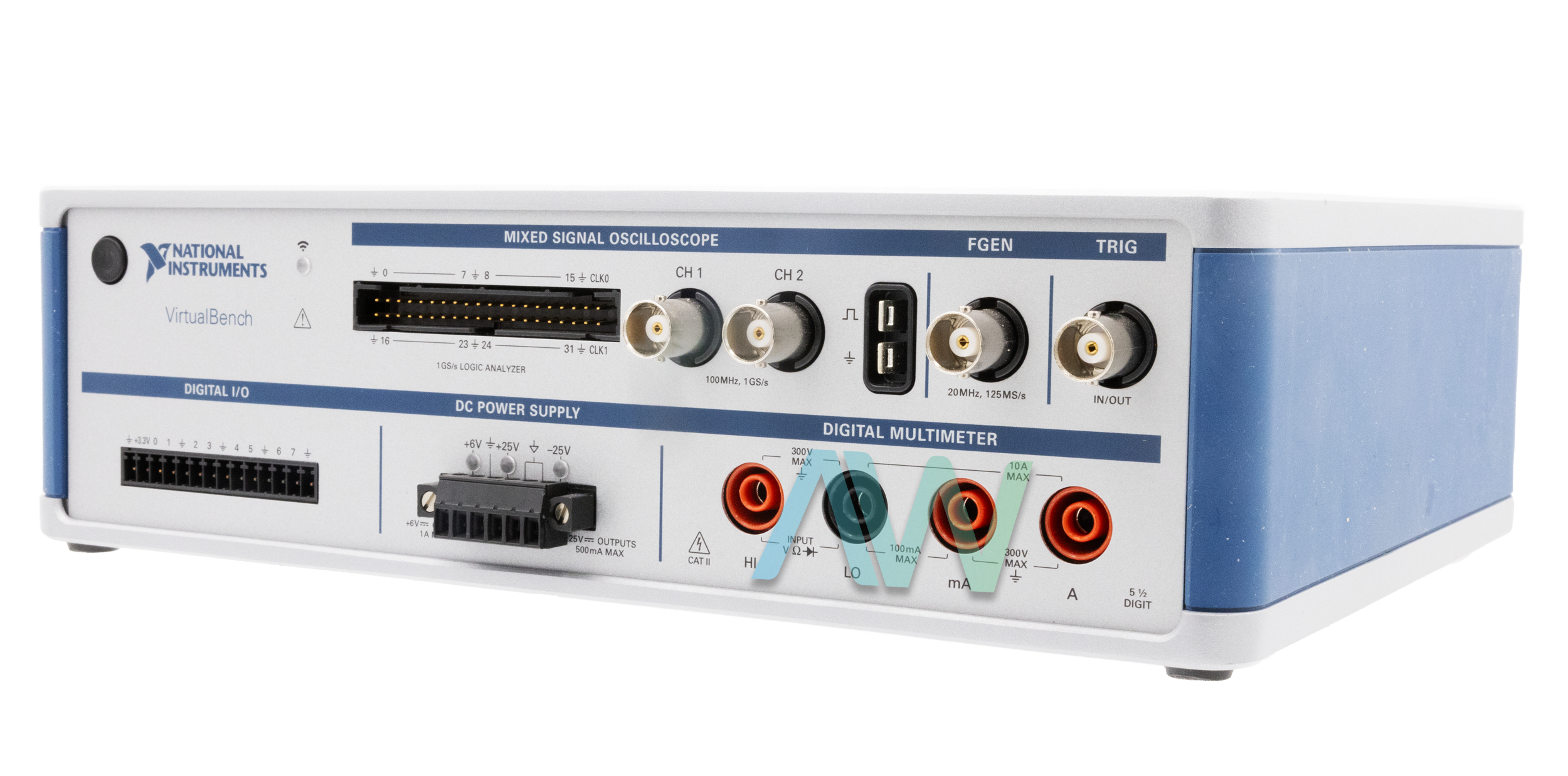

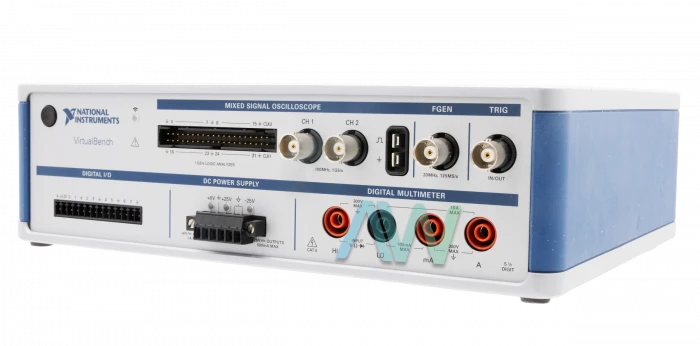

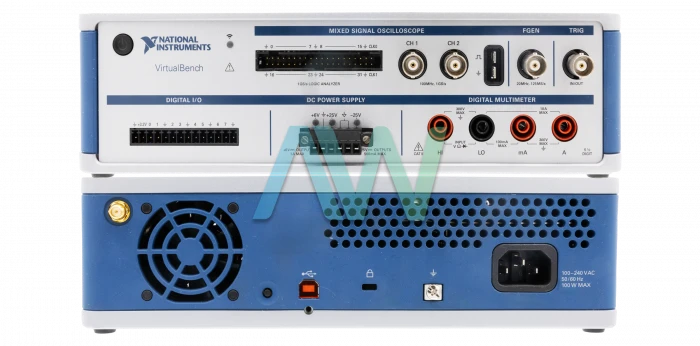

NI VB-8012 All-in-One Instrument | In Stock Ships Today | Image
NI VB-8012 All-in-One Instrument | In Stock Ships Today | Image
VB-8012 New
VB-8012 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

NI VB-8012 All-in-One Instrument | In Stock Ships Today | Image
NI VB-8012 All-in-One Instrument | In Stock Ships Today | Image
VB-8012 New
VB-8012 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments VB-8012 VirtualBench All-in-One Instrument

Featured with a programmable power supply (DC), an arbitrary waveform generator, and other instruments, the NI VB-8012 (Part Numbers: 783555-05, 783555-02, 783555-11, 783555-04, 783555-12, 783555-01, 154321F-01L, 154321B-01L) is a 100 MHz bandwidth, 2-Channel VirtualBench All-in-One Instrument. This instrument comes with a specially designed software program that allows you to view your measurements interactively. The NI VB-8012 offers protocol analysis through its 100 MHz, two-channel oscilloscope. This instrument has an integrated digital multimeter as well.

This VirtualBench All-in-One Instrument is designed to provide you with a variety of measurement and analysis tools in a single package. Thus, you can save a lot of money and time that otherwise will be required for the acquisition and configuration of several devices. The oscilloscope incorporated in the National Instruments VB-8012 VirtualBench All-in-One Instrument has a resolution of 8-bits and supports both AC and DC coupling. This instrument features a 34-channel digital logic analyzer as well. The waveform function generation incorporated in the NI VB-8012 can generate arbitrarily, sine, square, ramp/triangle, and DC waveforms with an update rate of 125 MS/s and 14-bits resolution.

The VB-8012 VirtualBench All-in-One Instrument not only provides you with five essential tests and measurement devices but is capable of integrating with your personal computer as well. Thus, you can easily import your measurements and other data from this device to your computer. The programmable DC power supply incorporated in the NI VB-8012 has three channels. Each channel has a different range of voltage/current. The digital multimeter has a wide range of measurement functions including: AC voltage, DC voltage, DC current, AC current, resistance, etc.

The VB-8012 is no longer available with NI, but it will remain available in perpetuity for both purchase and repairs with Apex Waves.

ModelVB-8012
ManufacturerNational Instruments
Part Numbers783555-05, 783555-02, 783555-11,
783555-04, 783555-12, 783555-01, 154321F-01L, 154321B-01L
TypeVirtualBench All-in-One Instrument
Voltage Input Channels2
Bandwidth100 MHz
Resolution8 Bit
Analog Input CouplingAC and DC
Sample Rate1 GS/s Maximum
Oscilloscope Bandwidth100 MHz Maximum
Total Output Power31 W
Analog Output Bandwidth20 MHz
Dimensions10.00 in. × 7.50 in. × 3.06 in.
Weight4 lb 8.3 oz.
Warranty2-3 Year Warranty
VB-8012 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for VB-8012:

National Instruments VB-8012 VirtualBench All-in-One Instrument Frequently Asked Questions



Question: What is the National Instruments VirtualBench series?

Answer: The NI VirtualBench series combines the power of a digital multimeter, arbitrary waveform generator, digital I/O, programmable DC power supply, and mixed-signal oscilloscope into one compact device.



Question: What is the resolution for the Digital Multimeter of the VB-8012?

Answer: The resolution of the instrument's DMM is 5½ digits.



Question: What connector type does the VB-8012's DMM have?

Answer: The DMM has 4 mm banana jack connectors.



Question: What is the operational shock and vibration of the VB-8012?

Answer: The shock and vibration is 30 g peak, half-sine, and 11 ms pulse.
