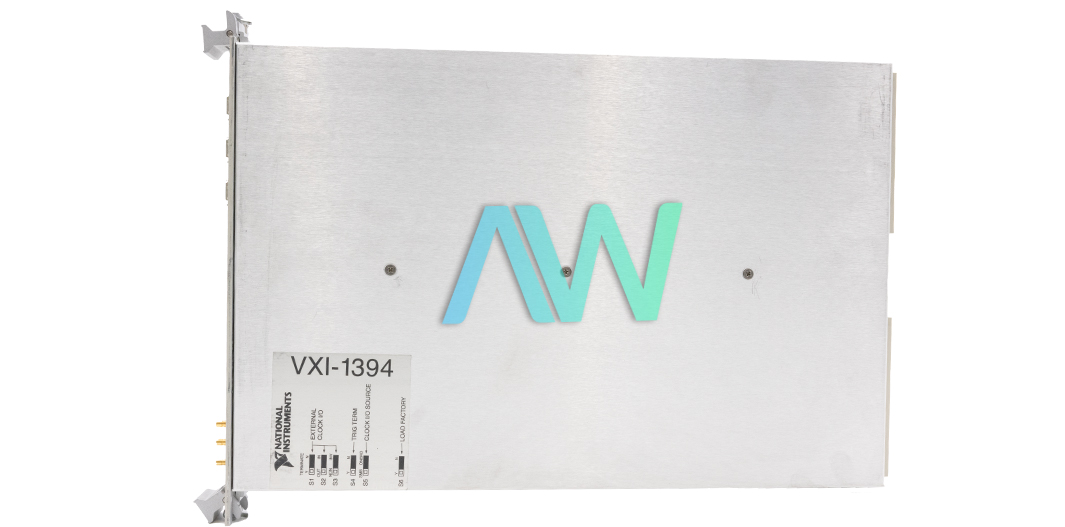

National Instruments 778118-01 Remote Controller
National Instruments part number 778118-01 is an identifying part number for the VXI-1394 a C-size IEEE 1394 Remote Controller with 11 Mbytes/s Maximum Throughput and full compatibility with VXI specification. This remote controller can be purchased as a kit. The part number 778118-01 (first version) is compatible with Windows 2000, XP, Me, and 98. The second version (Part Number: 778117-01) is designed for Windows NT. Both kits include a 4.5 m FireWire cable and a PCI-1394 Interface Board.
This device works with NI-VXI and NI-VISA driver software, which are useful for troubleshooting, debugging VXI systems, and programming libraries. The recommended software for this controller includes LabVIEW, LabWindows/CVI, and Measurement Studio. It connects a PCI-based computer to the VXIbus using the IEEE 1394 (FireWire) high-speed serial bus. It also includes VXI Slot 0 capabilities, such as a resource manager. With the NI VXI-1394 kit, your computer can function as though it were directly connected to the VXI backplane, similar to an embedded computer.

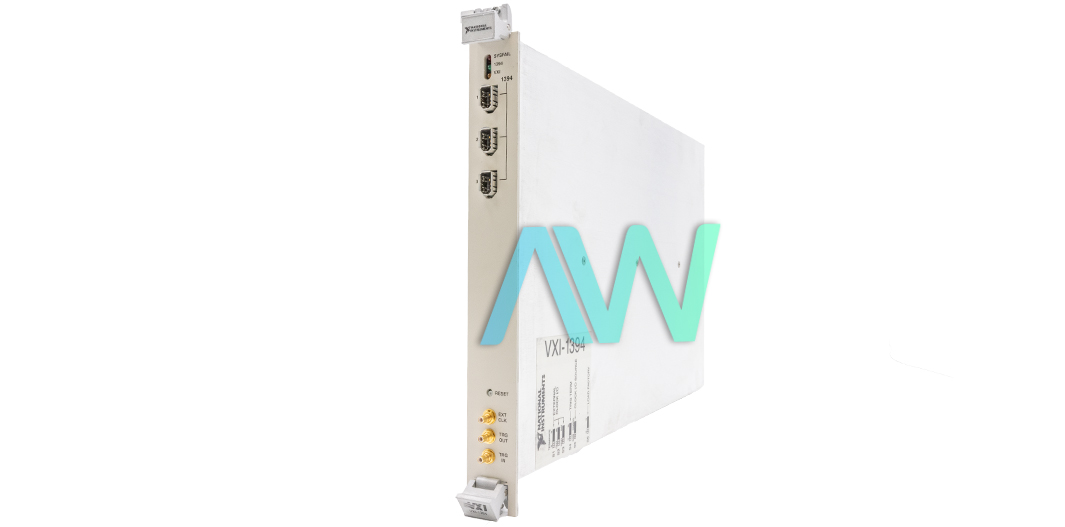

The NI 778118-01 supports a maximum sustained throughput of 11 Mbytes/s across the1394 bus. This module includes multiple I/O connectors: three 6-pin 1394 connectors, three SMB connectors, and one optional GPIB connector. It requires a single VXI C-size slot for installation and is fully compatible with the VXI specification. The module falls under the Class 1 TTL VXI keying class. Additionally the 778118-01 offers hot plug-in capability, allowing you to add and configure 1394 instruments without powering down the system. Multiple 1394 instruments can be connected in a tree topology; however, increasing the complexity of the bus topology may reduce overall system performance. This IEEE 1394 Remote Controller supports two-way VXI transfers.
| Part Number | 778118-01 |
|---|---|
| Model Range | VXI-1394 |
| Part Type | IEEE 1394 Remote Controller |
| Maximum Throughput | 11 Mbytes/s |
| Slot Requirement | Single VXI C-size slot |
| VXIbus Configuration Space | 64 B |
| Compatibility | Fully compatible with VXI specification |
| VXI Keying Class | Class 1 TTL |
| Data Payload Packet Sizes. | Up to 2,048 bytes |
| Weight | 2.45 lb. (without DRAM installed) |
