Modular Systems > National Instruments > VXI and VME

VXI-MIO-64E-1 Request for Availability

VXI-MIO-64E-1, 64-Channel, 12 Bit Resolution, Multifunction I/O Module

Rated 4.9/5 | 5 ratings

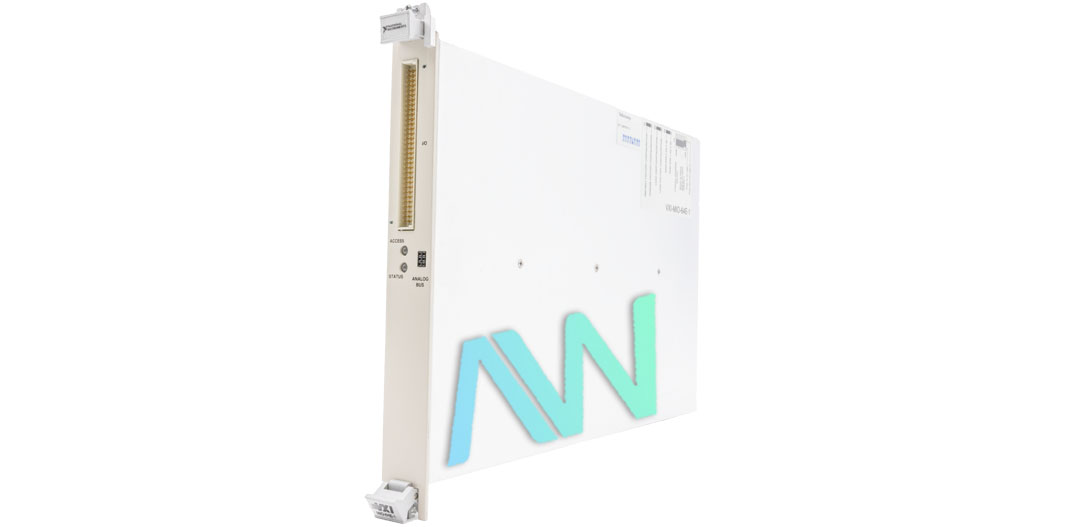

VXI-MIO-64E-1 National Instruments Multifunction I/O Module | Apex Waves | Image

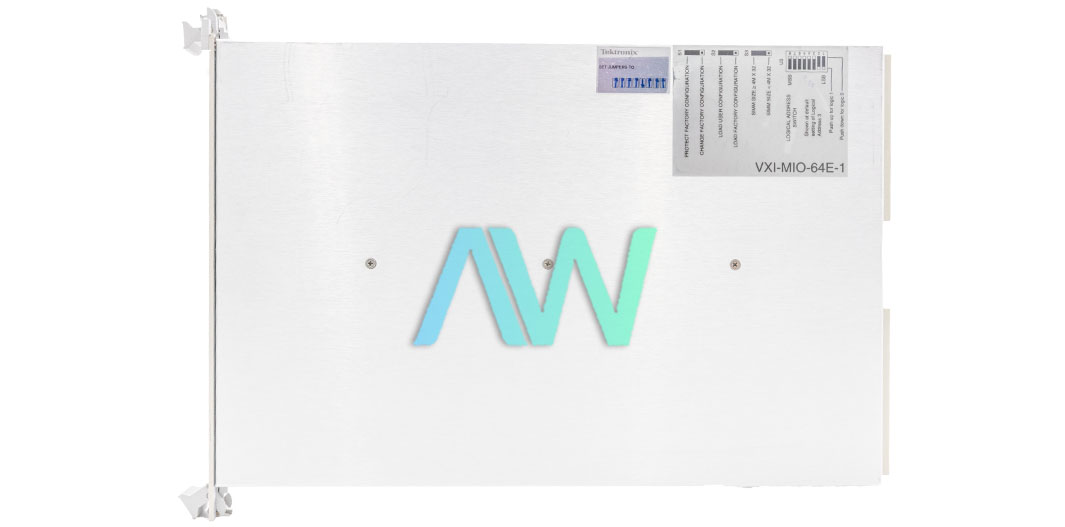

VXI-MIO-64E-1 National Instruments Multifunction I/O Module | Apex Waves | Image
VXI-MIO-64E-1 New
VXI-MIO-64E-1 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

VXI-MIO-64E-1 National Instruments Multifunction I/O Module | Apex Waves | Image
VXI-MIO-64E-1 National Instruments Multifunction I/O Module | Apex Waves | Image
VXI-MIO-64E-1 New
VXI-MIO-64E-1 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments VXI-MIO-64E-1 Multifunction I/O Module

The VXI-MIO-64E-1 Multifunction I/O Module is designed by National Instruments. The VXI-MIO-64E-1 is a single slot VXI C-size module with three different input modes: NRSE, RSE, and DIFF. The VXI-MIO-64E-1 has unipolar and bipolar input polarities. The VXI-MIO-64E-1 has a maximum sampling rate of 1.25MS/s and a resolution of 12 bits.

The VXI-MIO-64E-1 is a plug&play module. The VXI-MIO-64E-1 incorporates analog and digital I/O channels for the VXI bus. The VXI-MIO-64E-1 is comprised with a 12-bit analog-to-digital converter. The VXI-MIO-64E-1 features 64 analog inputs and voltage outputs. The VXI-MIO-64E-1 module also has two timers for timing modules. The resolution of the timers is 12-bits. In addition, the VXI-MIO-64E-1 also has 8 sets of digital I/O lines that are TTL compatible. The VXI-MIO-64E-1 uses the DAQ-STC for timer functions. The VXI-MIO-64E-1 modules use the VXI bus for synchronization of measurements in series modules of VXI-MIO. The VXI-MIO-64E-1 is compatible with the SCXI system of signal conditioning and multiplexing to receive over 3000 signals from different inputs like thermocouples, RTDs, pressure gauges, voltage sources, current sources, and communication signals can also be interfaced with this module.

Compatible software for this module includes LabVIEW, LabWindows/CVI, Measure, ComponentWorks, Virtual Bench, NI-DAQ developed applications, and VXI plug&play instrument Driver. The NI-DAQ and VXI plug&play application drivers for interfacing with the VXI-MIO-64E-1 use the VXI-DAQ hardware through VISA driver Software. National Instruments has optional accessories available for use with the VXI-MIO-64E-1 that can perform different types of functions. These include SCXI modules and SC modules. The SCXI modules are used for isolation, multiplexing, and amplification.

VXI-MIO-64E-1 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelVXI-MIO-64E-1
ManufacturerNational Instruments
SeriesVXI-MIO Series
TypeMultifunction I/O Modules
Channels64 Single-Ended or 32 Differential
Resolution12 Bits
Power Available at I/O Connector+4.65 VDC to +5.25 VDC at 1 A
DimensionsVXI C-size single slot
I/O Connector96-pin DIN
Warranty2-3 Year Warranty
VXI-MIO-64E-1 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for VXI-MIO-64E-1:

National Instruments VXI-MIO-64E-1 Frequently Asked Questions



Question: What type of channel numbering scheme does the VXI-MIO-64E-1 have?

Answer:The VXI-MIO-64E-1 has a channel numbering scheme that is identical to the one of the AT-MIO-64E-3.



Question: What driver software is compatible with the VXI-MIO-64E-1?

Answer: The Multifunction I/O Module works with the 5.1 version of the NI-DAQ Driver for PC Compatibles.



Question: How often should the VXI-MIO-64E-1 be calibrated?

Answer: It is recommended by NI to calibrate the module annually, though this interval can be shortened to 6 months or even 90 days if desired.



Question: Can a VXI-MIO module be connected to a SCXI module?

Answer: Yes, a module from the VXI-MIO Series can be connected over long distance to two SCXI modules by using the SCXI-1356 shielded cable.
