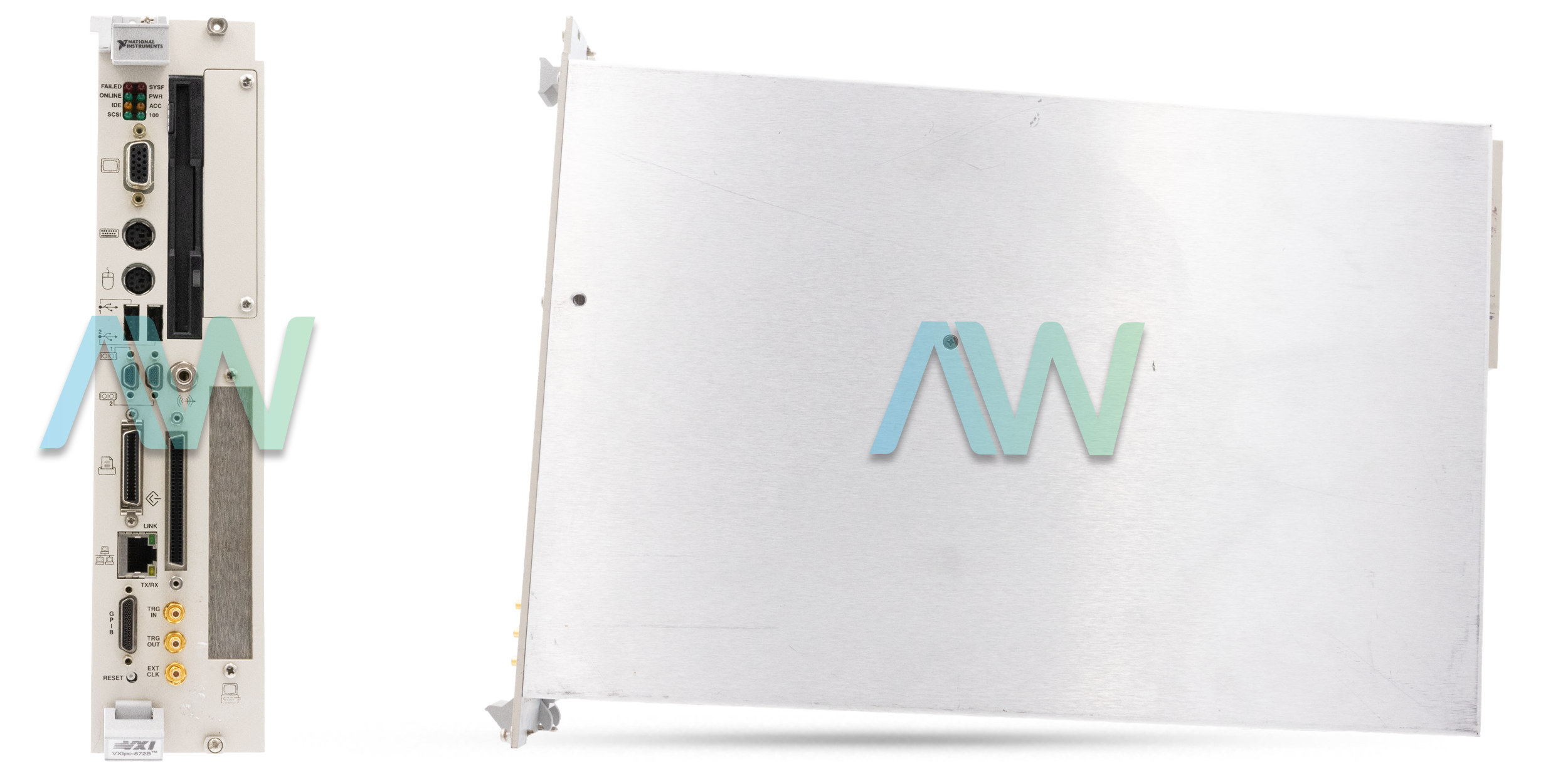

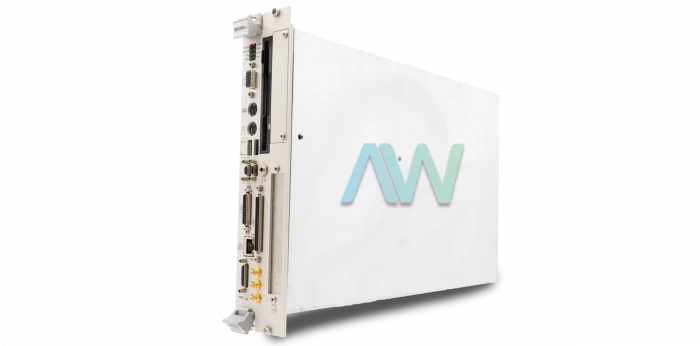

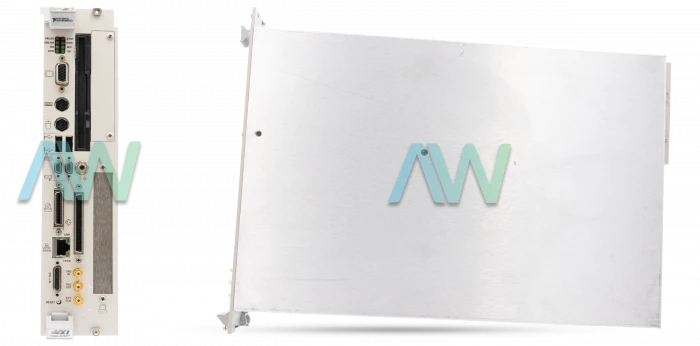

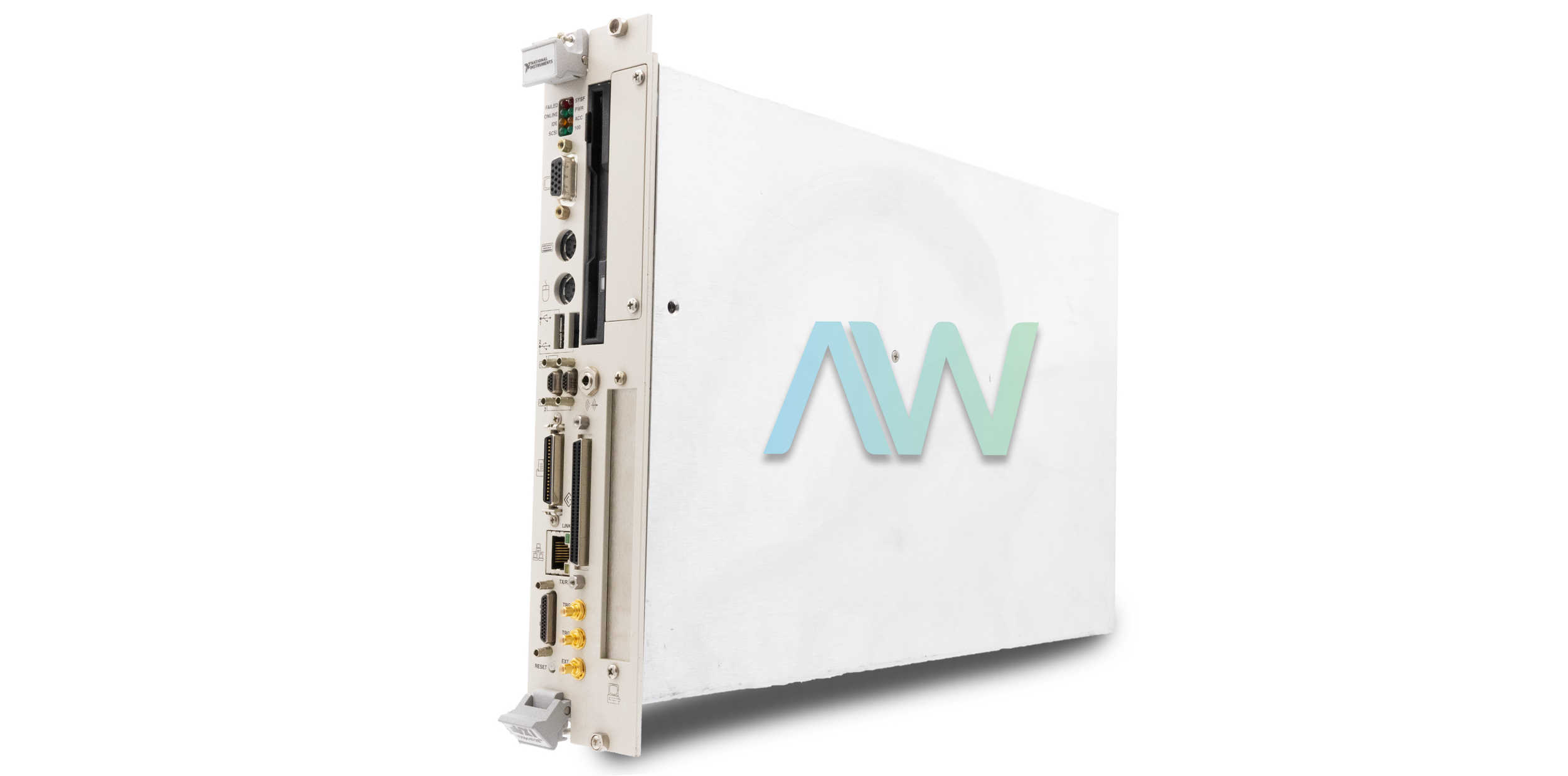

National Instruments VXIpc-872B VXIbus Controller
The National Instruments VXIpc-872B is an embedded VXIbus Controller. The NI VXIpc-872B is available for order with three options for OS. These versions have different part numbers. The required version can be ordered by using the unique part number. The part numbers are 778296-00 (No OS), 778296-01 (Windows 2000), and 778296-03 (Windows XP).
The NI VXIpc-872B is an efficient controller with a Pentium-III CPU. The VXIpc-872B is specifically designed for VXI systems. The NI VXIpc-872B is compatible with a large range of software applications and programs for general desktop computers. This feature is useful because users can directly control the VXI memory, triggers, interrupts, and registers by using the VXIpc-872B. Two VXI C-size slots are required for National Instruments VXIpc-872B VXIbus Controller for installation.
The NI VXIpc-872B features an Intel Pentium-III processor, with a clock speed that may vary depending on the configuration. The VXIpc-872B comes with a number of features and pre-installed software. Depending upon the part number, it comes with an installed OS. Other installed software that comes as standard for this VXIbus Controller includes NI-VXI and NI-VISA, with optional LabVIEW support. The NI VXIpc-872B has internal IDE storage. In addition, a PCI expansion slot is available in the VXIpc-872B. The BIOS system of the National Instruments VXIpc-872B VXIbus Controller is stored on a 4 Mbit Flash device, designed for the VXIpc-870B Series.
The VXIpc-872B has been announced as Obsolete by National Instruments, but the VXIbus Controller will still be available for both purchase and repairs in perpetuity with Apex Waves!
| Model | VXIpc-872B |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 778296-00, 778296-01, 778296-02, and 778296-03 |
| Series | 870B Series |
| Type | VXIbus Controller |
| Slot Requirements | 2 System Slots |
| MTBF | 86,503 h |
| Compatbility | Fully Compatible with VXI Specification |
| EMI | FCC Class A Verified, EC Verified |
| Noncondensing Relative Humidity | 10 to 90% (Operating) 5 to 95% (Storage) |
| Operating Temperature | 5 to 50 °C |
| Storage Temperature | –20 to 70°C |
| Dimensions | 9.187 x 13.386 x 2.4 in. (233.35 by 340 by 60.96 mm) |
| Weight | 4.86 lb. (2.20 kg) |
| Warranty | 2-3 Year Warranty |
| VXIpc-872B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing |
Associated part numbers for VXIpc-872B:
National Instruments VXIpc-872B VXIbus Controller
Question: What operating systems are supported on the NI VXIpc-872B?
Answer: The NI VXIpc-872B is available with three operating system options:
778296-00 – No OS
778296-01 – Windows 2000
778296-03 – Windows XP
Users can also install their own OS, provided it is compatible with the hardware.
Question: What are the slot requirements for installing the VXIbus Controller?
Answer: The NI VXIpc-872B requires two C-size VXI slots in a VXI mainframe. It connects directly to the VXI backplane and serves as a system controller.
Question: Does the VXIpc-872B support PCI expansion?
Answer: Yes, the controller includes one PCI expansion slot, allowing users to add a compatible PCI-based expansion card for additional functionality.
Question: What storage options are available on the VXIpc-872B?
Answer: The VXIbus Controller comes with internal IDE storage. While the manual does not confirm a removable ATA flash drive, it does support a 2.5-inch ATA100 hard drive as the primary storage device.
