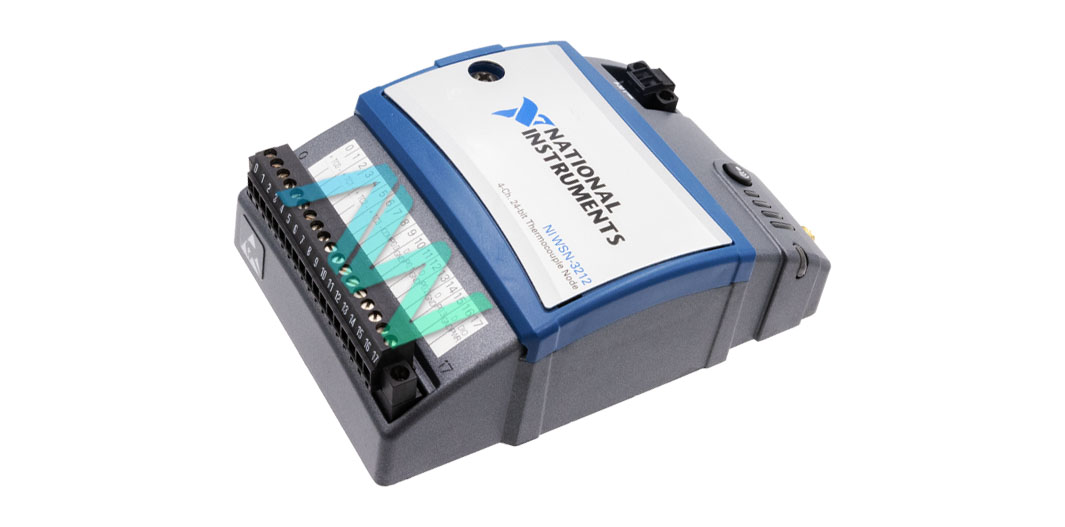

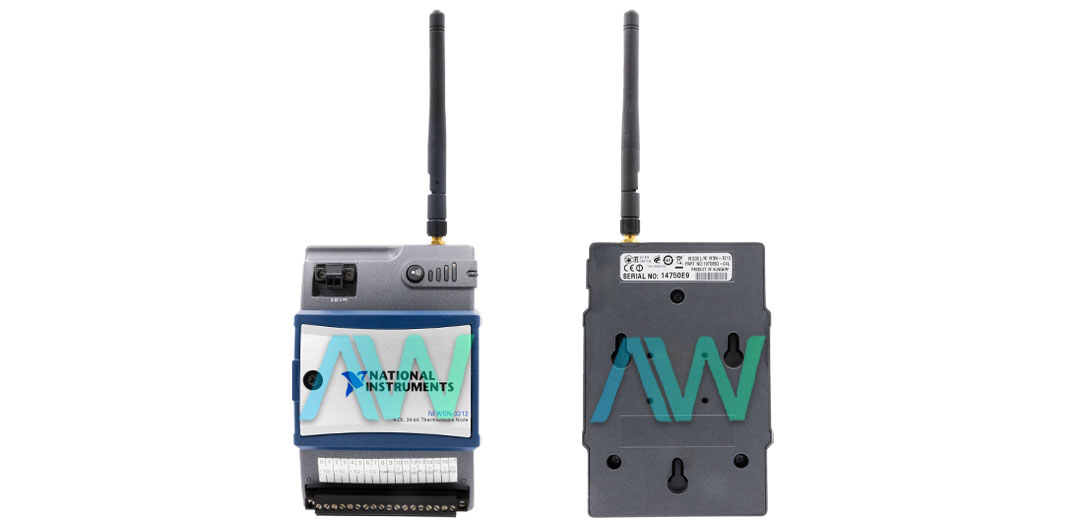

National Instruments WSN-3212 Thermocouple Input Node for WSN
The National Instruments WSN-3212 (Part Numbers: 780998-01 and 780998-02) is a Thermocouple Input Node for Wireless Sensor Networks. This 4-channel model comes with thermocouple input channels and 4 bidirectional digital channels, and has an ADC resolution of 24 bits. The digital channels can be configured for sinking output, input, or sourcing output on a per-channel basis. The NI WSN-3212 can also be configured as a mesh router. Thus, you can use this device to achieve a higher node count or to increase the overall network distance. A single WSN gateway can accommodate as many as 32 measurement nodes or eight end nodes. The WSN-3212 comes featured with industrial temperature ratings and programmable input ranges. The device has a voltage range of 9 to 30 V.
This low power input device is designed to work without WSN-32xx gateways and nodes for the construction of a wireless sensor network. These wireless sensor networks are considered ideal for regular or ad-hoc industrial applications where fast acquisition and transmission of the distributed sensor data is required. With the NI WSN-3212, you can construct a truly wireless monitoring and control system without involving hardwired signals.
The National Instruments WSN-3212 Thermocouple Input Node comes with built-in CJC (cold junction compensation) and provides support for a variety of thermocouple types, including R, S, T, B, N, E, J, etc. This device can be powered by a field-replaceable battery or an external power supply and communicates with the gateway by generating 2.4 GHz frequency radio signals. The communication band utilized by the NI WSN-3212 and other NI WSN devices are carefully chosen for minimal interference from other communication signals.
The WSN 3212 can be programmed using the NI-WSN software which includes the Measurement & Automation Explorer (MAX) tool, and is compatible with an application development environment (ADE) like LabVIEW.
WSN-3212 Mature Status has been announced by National Instruments, but the Thermocouple Input Node will still be available for purchase and repairs by Apex Waves.
| Model | WSN-3212 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 780998-01 and 780998-02 |
| Type | Thermocouple Input Node for WSN |
| Channels | 4 |
| ADC Resolution | 24 bits |
| Voltage Range | 9 to 30 V |
| Calibration Interval | 3 years |
| Weight | Without antenna: 8.5 oz. With antenna: 9 oz. |
| Warranty | Three Year Warranty |
| WSN-3212 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for WSN-3212:
National Instruments WSN-3212 Frequently Asked Questions
Question: What is the radio mode of the WSN-3212?
Answer: The radio mode of the WSN-3212 is IEEE 802.15.4. The frequency band is ISM 2.4 GHz (2400 MHz to 2483.5 MHz)
Question: What are the digital input logical levels of the WSN-3212?
Answer: For high level input voltage, the digital input logical levels are 1.7 to 30 V. For low level input, the levels are 0 to 0.45 V.
Question: What is the sensitivity of the wireless receiver for the WSN-3212?
Answer: The receiver sensitivity is -102 dBm
