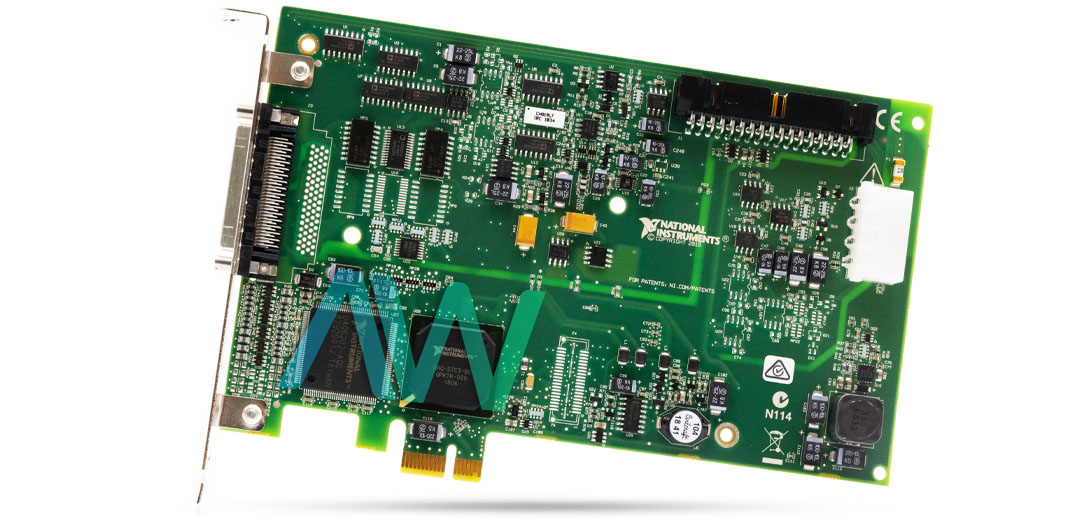

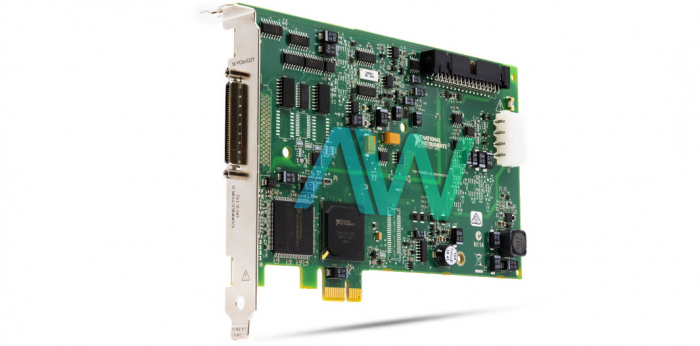

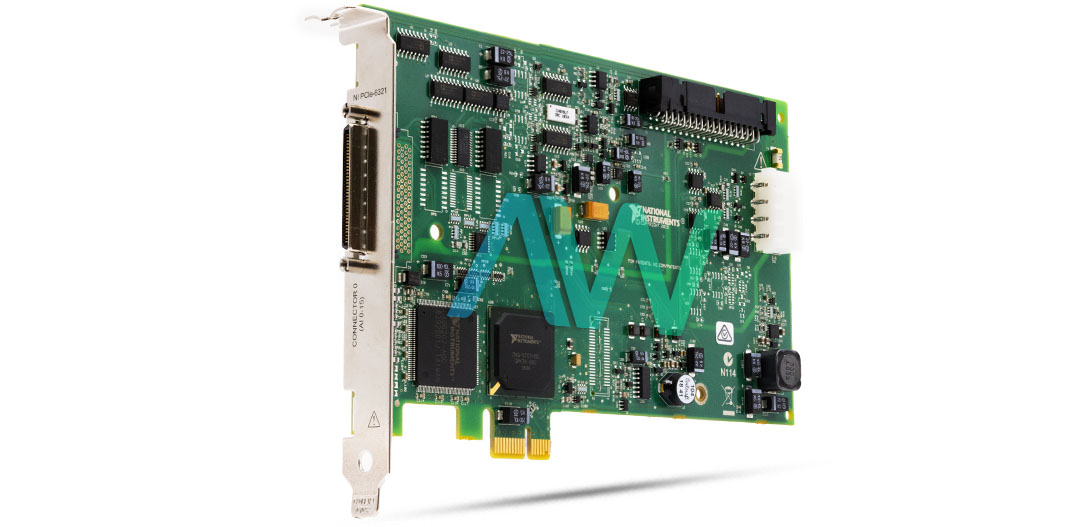

National Instruments 781044-01 Multifunction I/O Device
The 781044-01 from National Instruments is a Multifunction I/O Device that is also known as the PCIe-6321. As part of the X series, the device has a wide range of analog and digital input/output functions and is made for a variety of industrial applications. It is appropriate for a variety of jobs, from simple data logging to intricate automation systems, thanks to its high-performance data acquisition and control capabilities.
With PCI Express connectivity, the 781044-01 utilizes the bus interface's high-throughput capabilities to provide effective data transfer and synchronization. Precise timing operations are guaranteed by its onboard NI-STC3 timing and synchronization technology, which features separate analog and digital timing engines as well as retriggerable measurement duties.
The device's analog input part has 16 single-ended or 8 differential channels with guaranteed no missing codes and 16-bit resolution. With a maximum working voltage of ±11 V, it provides many input ranges (-0.2 V to +10 V). It guarantees precise and dependable analog measurements under various signal situations thanks to its low crosstalk (-90 dB for non-adjacent channels, -75 dB for adjacent channels) and 100 dB CMRR.
The device offers two channels of analog output with 16-bit resolution, which guarantees accurate control and manipulation of analog signals. It restricts glitch energy for smooth signal creation and keeps monotonicity with ±1 LSB DNL.
Through pull-down resistors and input voltage protection integrated in, the 781044-01 provides 24 individually programmable channels for input or output in terms of digital I/O. It facilitates the synchronization of other systems or devices with external digital triggers from many sources.
In addition, the gadget has flexible trigger options for a variety of uses, such as digital waveform production and acquisition, counter and timer capabilities, and analog input/output. It enables trigger bus communication between devices, which makes multi-device configurations easier to synchronize.
Compliant with several slot configurations and featuring a small x1 PCI Express form factor, the 781044-01 provides system integration flexibility. To facilitate various kinds of data collecting and control operations, it offers eight DMA channels for effective data transfer.
| Part Number | 781044-01 |
|---|---|
| Model Name | PCIe‑6321 |
| Part Type | Multifunction I/O Device |
| Analog Input Channels | 16 Single Ended or 8 Differential |
| Analog Input Resolution | 16 Bits |
| Maximum Input Voltage | ±10 V |
| Digital I/O Channels | 24 |
| Digital I/O Compatibility | 8 (P0.<0..7>), 16 (PFI <0..7>/P1, PFI <8..15>/P2) |
| Analog Output Channels | 2 |
| Analog Output Resolution | 16 Bits |
| DMA Channels | 8 |
| I/O Connector | 68-Position VHDCI (Right Angle, Dual Stack, PCB-Mount) |
| Dimensions | Half length: 3.9 in. × 6.6 in. (9.9 cm × 16.8 cm) |
| Weight | 3.6 oz (104 g) |
| Manufacturer | National Instruments |
| Pricing | Request a Quote for Pricing Info |
Associated part numbers for 781044-01:
National Instruments 781044-01 Frequently Asked Questions
Question: Does the disk drive of the 781044-01 use a serial ATA power connector?
Answer: No, the disk drive of the device uses a standard ATX peripheral connector.
Question: What is the slot compatibility with the Multifunction I/O Device?
Answer: The bus interface of the 781044-01 is compatible with x1, x4, x8, and x16 PCIe slots.
Question: What is the timing resolution of the 781044-01?
Answer: The timing resolution is 10 ns.
Question: What is the resolution of the counter/timers of the device?
Answer: The counter/timers of the 781044-01 have 32-bits of resolution.
