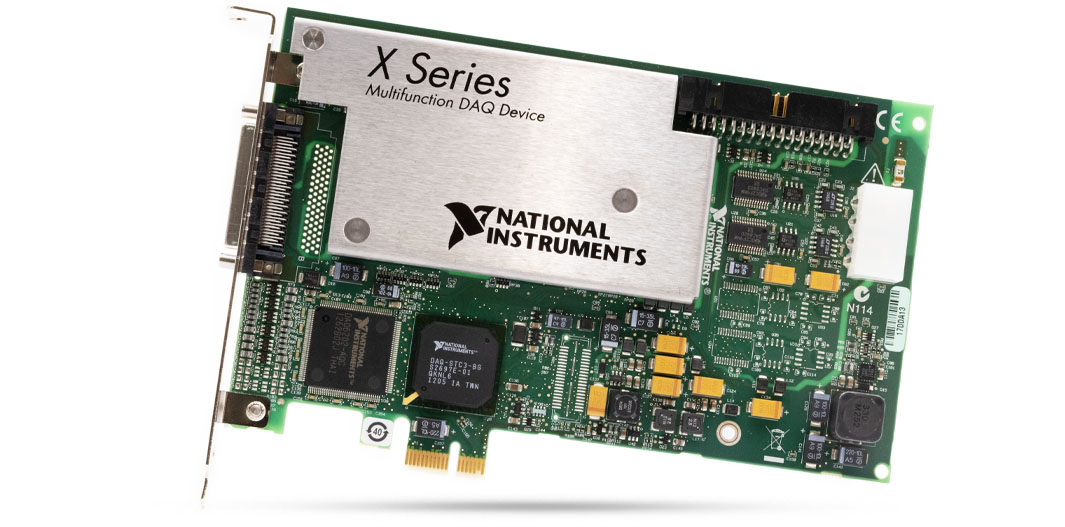

PCIe-6351 National Instruments Multifunction I/O Device | Apex Waves | Image
PCIe-6351 New
PCIe-6351 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PCIe-6351 National Instruments Multifunction I/O Device | Apex Waves | Image
PCIe-6351 National Instruments Multifunction I/O Device | Apex Waves | Image
PCIe-6351 New
PCIe-6351 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PCIe-6351 Multifunction I/O Device

The PCIe-6351 (Part number: 781048-01) is an X Series Multifunction I/O Device manufactured by National Instruments. The device meets EMC standards, which are essential for electrical equipment used in the lab. These standards are also essential for control and measurement purposes. National Instruments is dedicated to planning and developing reliable products. The NI PCIe-6351 is manufactured in the same way.

The National Instruments PCIe-6351 is featured with a PCI Express Interface, which is compatible with 1 to 16 PCI Express slots. It enables the device to deliver up to 16 digital input and 8 digital output lines. The NI device has 16 single-ended or 8 differential analog input channels (with a 16-bit resolution and a maximum sample rate of 1.25 MS per second), and 2 analog output channels–equally with a 16-bit resolution and a maximum update rate of 2.86 MS per second for one channel. The NI PCIe-6351 also has external digital triggers which are workable through any PFI or RSTI. These triggers have software-selectable polarity for many signals. The external digital triggers have analog inputs and outputs. It can also be used as a sample clock timebase and a sample clock. T

he NI PCIe-6351 can generate the trigger with another device bus interface. It uses RSTI as the input and output medium. The device also has on phase locked loop, and is equipped with a 68-pin VHDCI I/O connector. The Multifunction I/O Device is operated using the NI-DAQmx driver software which is compatible with an application development environment like LabVIEW or other software choices.

The National Instruments PCIe-6351 has four 32‑bit counters/timers for event counting and PWM, which operate at a frequency of 100 MHz. These are also included for frequency, encoder, and much more. Additionally, it has 1 frequency generator channel. This device provides excellent performance through driver and application software. The NI PCIe-6351 is perfectly applicable in test automation and control applications. This device is also suitable for general data logging application. It weighs 0.35 lbs., and measures 3.9 x 6.6 in. in physical dimensions.

ModelPCIe-6351
ManufacturerNational Instruments
Part Number781048-01
SeriesX Series
TypeMultifunction I/O Device
Analog Input Channels16 Single-Ended or 8 Differential
Analog Output Channels2
Resolution16 Bits
Update Rate2.86 MS/s Maximum
Digital Inputs16
Digital Outputs8
Timing I/O4 Counter/Timer I/O (32 bits, 100 MHz)
Frequency Generator Channels1
Phase-Locked Loop (PLL)1
I/O Connector68-Pin VHDCI
Power Requirements+3.3 V, +12 V -- 0.59 A, 4.6 W, 5.4 W
Operating Temp Range0 to 50 °C
Storage Temp Range-40 to 70 ºC
DimensionsHalf-length 3.9 in. × 6.6 in. (9.9 × 16.8 cm)
Weight5.6 oz (161 g)
Driver SoftwareNI-DAQmx 9.0
WarrantyThree Year Warranty
PCIe-6351 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for More Information

Associated part numbers for PCIe-6351:

National Instruments PCIe-6351 Frequently Asked Questions



Question: What is the sample rate of the analog input channels of the PCIe-6351?

Answer: The sample rate of the analog input channels have a single channel maximum of 1.25 MS/s.



Question: What type of I/O connector does the PCIe-6351 have?

Answer: The I/O connector of the device is a single 68-Pin VHDCI connector.



Question: What type of input coupling does the Multifunction I/O Device have?

Answer: The device uses DC input coupling.



Question: What is the calibration interval of the PCIe-6351?

Answer: The recommended calibration interval is 2 years

Accessory TypeModel NamePart Number
CableSHC68-68-EPM192061-01 (1 m)
192061-02 (2 m)
192061-05 (5 m)
192061-0R5 (0.5 m)
RC68-68187252-01 (1 m)
187252-0R25 (0.25 m)
187252-0R5 (0.5 m)
Shielded Connector BlockSCB-68A782536-01
Shielded BNC ConnectorBNC-2110777643-01
Rack-Mountable AccessoryBNC-2090A (Rackmount)779556-01
Terminal BlockTB-2706779183-01
Connector BlockTBX-68777141-01
CB-68LP (Vertical Mount)777145-01
CB-68LPR (Right Angle Mount)777145-02
