PXIe-6361 In Stock | Ships in 3-5 Days
NI PXIe-6361, 16 Analog Inputs, 16 Bits DAC Resolution, PXI Multifunction I/O Module
Rated 4.64/5 | 15 ratings
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Ground Shipping
✔ NIST Calibration Available
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025

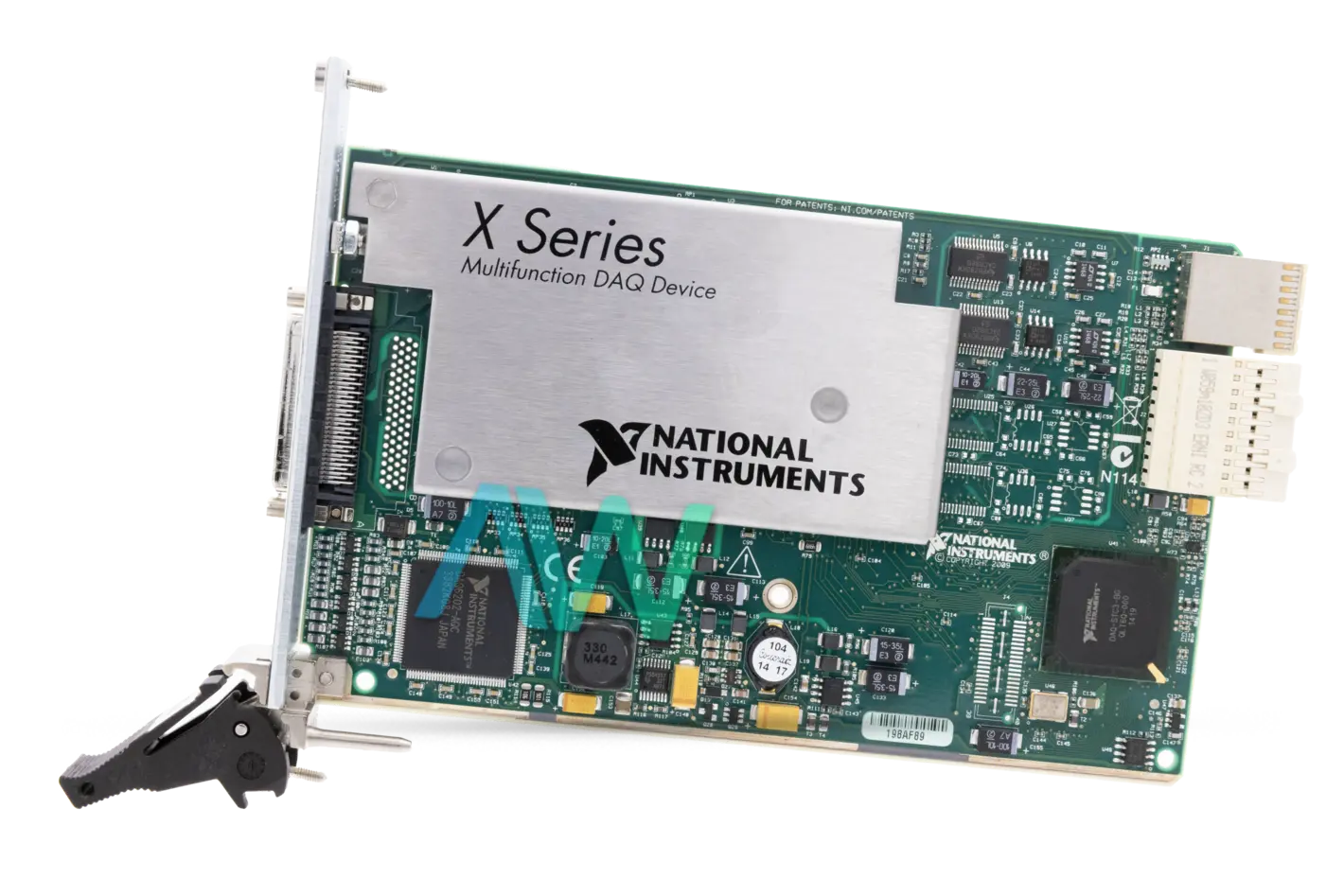

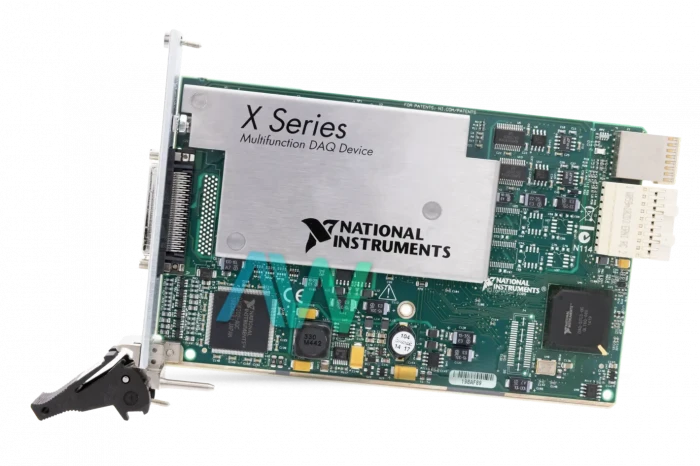

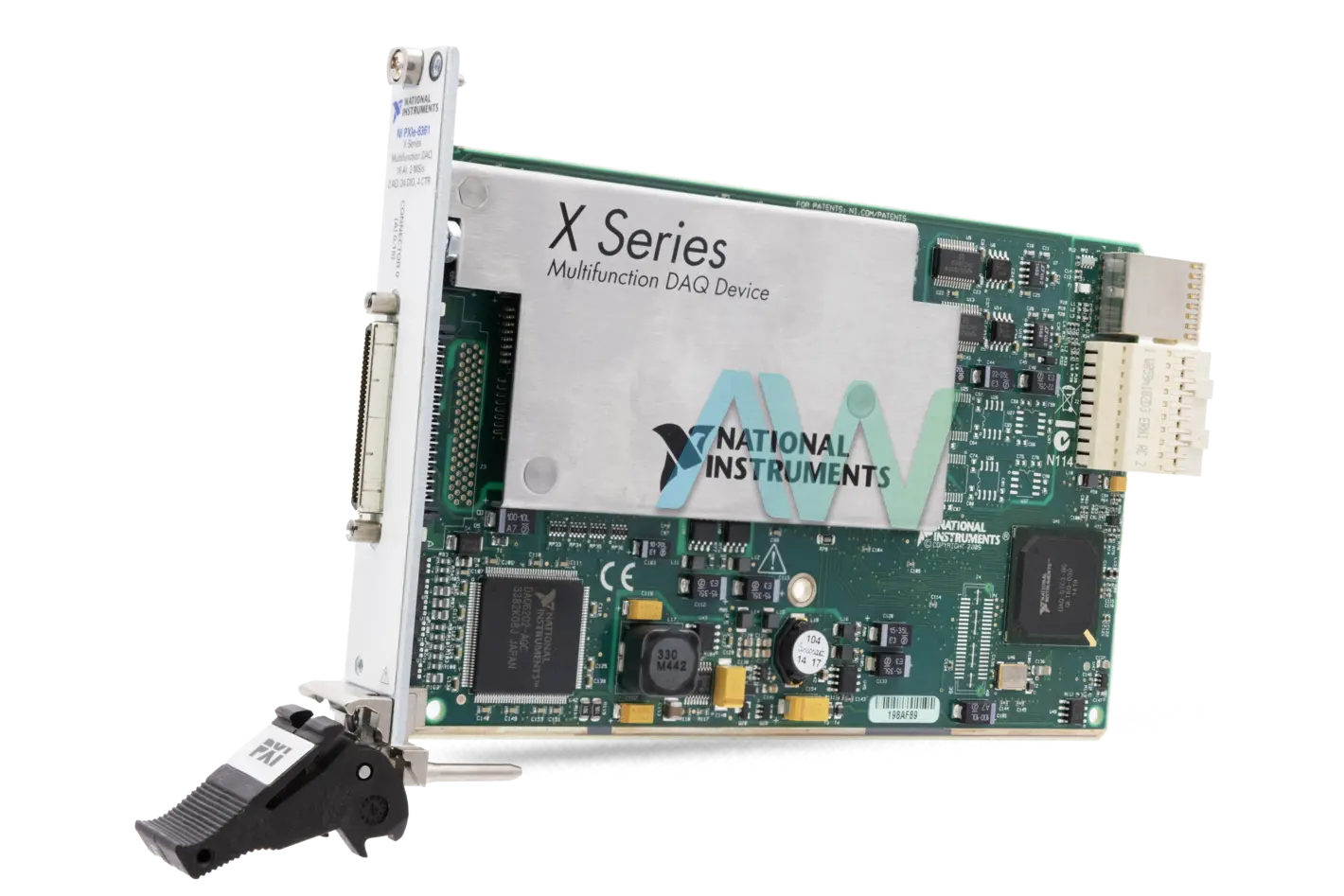

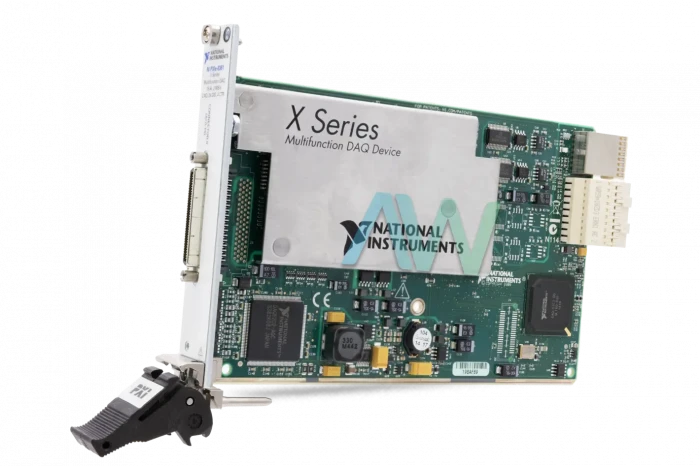

National Instruments PXIe-6361 PXI Multifunction I/O Module
The PXIe-6361 (Part Number: 781055-01) is a high-performance, 16-bit Multifunction I/O Module from National Instruments. Providing a wide range of features in a single PXI module, the NI PXIe-6361 offers 16 single ended analog input channels (or 8 differential), in addition to 2 analog output channels that have 16 bits of DAC resolution. In addition, the module is equipped with 24 digital I/O channels. The PXIe-6361 enables the user to quickly and easily perform a range of configurations and measurements- delivering advanced timing functionality, independent timing engines, and triggerable measurement tasks. As part of the National Instruments X Series, the PXIe-6361 utilizes a NI-DAQmx driver for software programming and configuration. Well suited for many test and measurement scenarios, this module is an excellent choice for applications ranging from basic data logging to control and test automation.
The maximum channel sampling rate for the inputs of the NI PXIe-6361 ranges from 1.0 MS/s to 2.0 MS/s, while the maximum for the output channel sampling rate ranges from 2.0 MS/s to 2.86 MS/s. For additional flexibility, there is no limit for the minimum channel sampling rate. The NI PXIe-6361 Module features 4 general purpose counters that have 32 bits of resolution. These counters are useful tools for PWM, encoder, frequency, event counting, and triggering functionality applications.
The power requirements for the PXIe-6361 depend on the power rail. For rails of 3.3 V, the device draws in 1.6 W. For 12 V, the power required is 19.8 W.
The standard 3U PXI design of the PXIe-6361 module weighs 205 g (7.2 oz). It is recommended to operate the device only within a temperature range of 0 to 55 °C with a humidity of 10% to 90% (noncondensing). When not being used, the module can be safely stored within an increased temperature range of -40 to 70 ºC with a humidity of 5% to 95% (also noncondensing). The NI PXIe-6361 Module can handle random operating and non-operating vibration of 0.3 grms and 2.4 grms respectively, at a frequency of 5 to 500 Hz.
| Model | PXIe-6361 |
|---|---|
| Part Number | 781055-01 |
| Manufacturer | National Instruments |
| Type | PXI Multifunction I/O Module |
| Single-Ended Analog Input Channels | 16 |
| Differential Analog Input Channels | 8 |
| Maximum Sample Rate | 2 MS/s |
| Board Dimensions | Standard 3U PXI |
| Weight | 7.2 oz. |
| Warranty | Three Year Warranty |
| PXIe-6361 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-6361:
National Instruments PXIe-6361 Frequently Asked Questions
Question: What is the slot compatibility of the PXIe-6361?
Answer: The slot compatibility for the I/O Module is x1 and x4 PXI Express or PXI Express hybrid slots.
Question: How many I/O connectors does the Multifunction I/O Module have?
Answer: The NI PXIe-6361 has one 68-pin VHDCI I/O connectors.
Question: What is the analog input absolute accuracy?
Answer: The analog input absolute accuracy for the PXIe-6361 is 1,660 uV.
Question: What is the ADC resolution of the module?
Answer: The ADC resolution of the NI PXIe-6361 is 16 bits.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHC68-68-EPM | 192061-01 (1 m) |
| 192061-02 (2 m) | ||
| 192061-05 (5 m) | ||
| 192061-0R5 (0.5 m) | ||
| RC68-68 | 187252-01 (1 m) | |
| 187252-0R25 (0.25 m) | ||
| 187252-0R5 (0.5 m) | ||
| Shielded Connector Block | SCB-68A | 782536-01 |
| Shielded BNC Connector | BNC-2110 | 777643-01 |
| Rack-Mountable Accessory | BNC-2090A (Rackmount) | 779556-01 |
| Terminal Block | TB-2706 | 779183-01 |
| Connector Block | TBX-68 | 777141-01 |
| CB-68LP (Vertical Mount) | 777145-01 | |
| CB-68LPR (Right Angle Mount) | 777145-02 |
PXIe-6361 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PXI-PXI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
NI-62XX-63XX-PINOUT-LABELS-FOR-THE-SCB-68-NOTE-TO-USERS.PDF
NI-62XX-63XX-PINOUT-LABELS-FOR-THE-SCB-68A-NOTE-TO-USERS.PDF
NI-6361-DEVICE-SPECIFICATIONS.PDF
