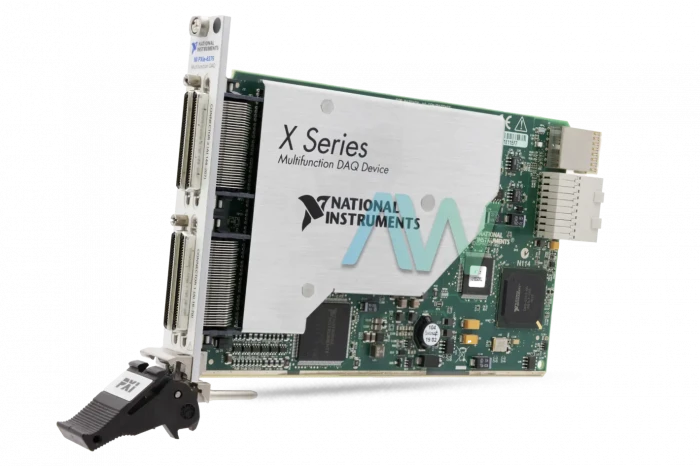

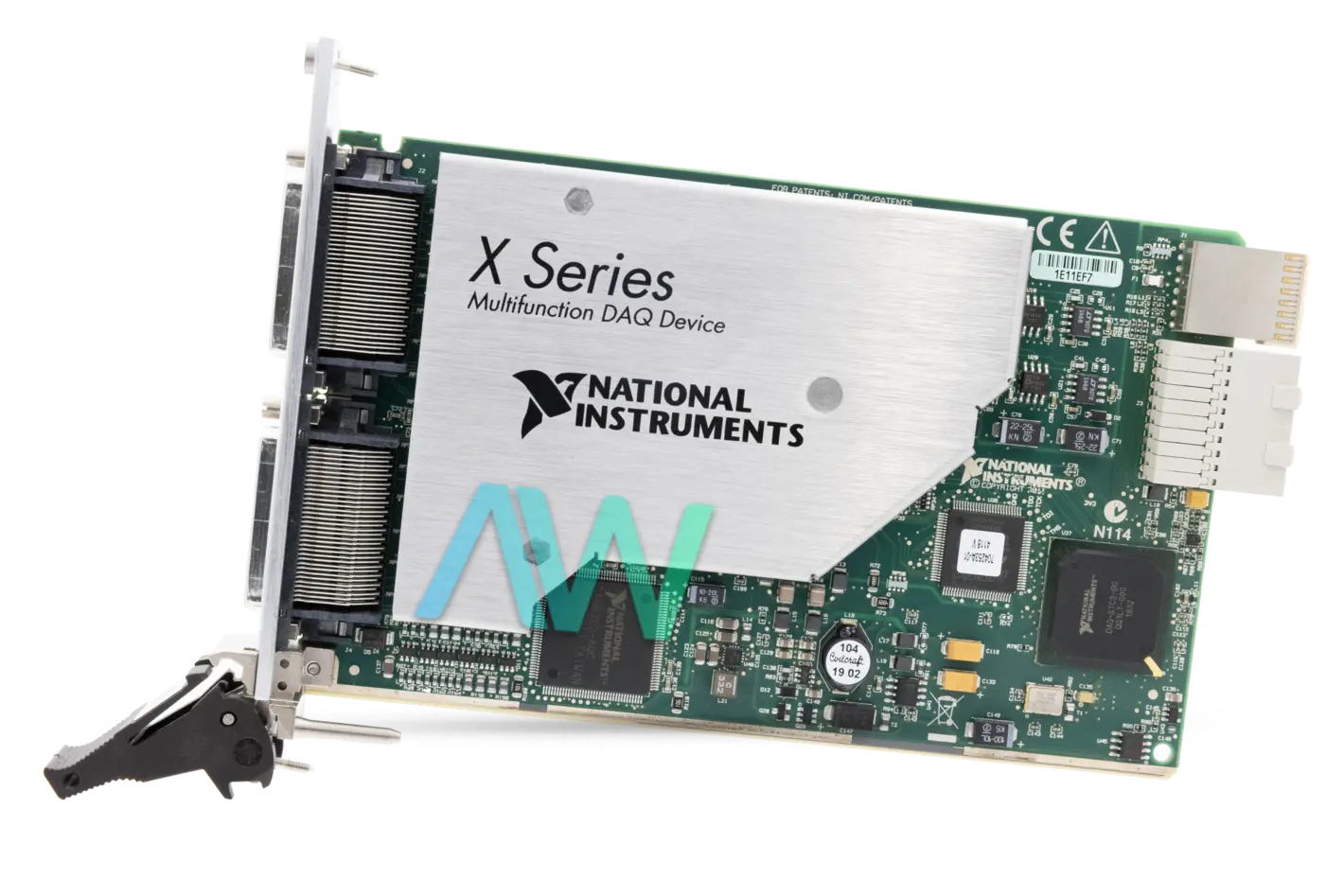

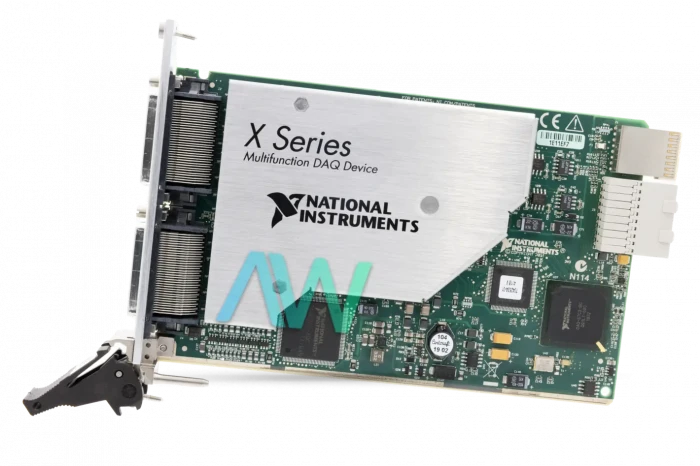

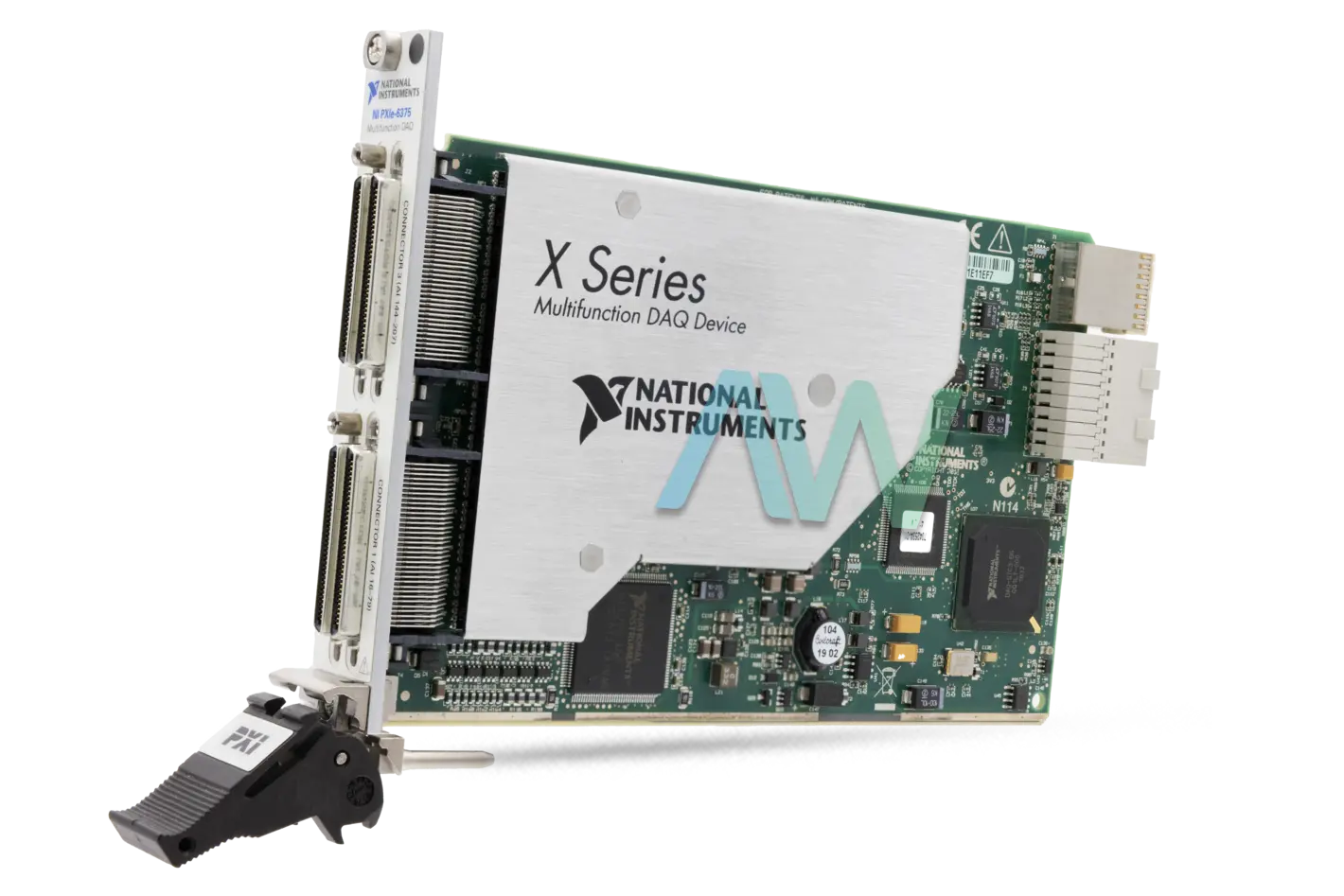

National Instruments PXIe-6375 Multifunction Module
The PXIe-6375 (Part Number: 783634-01) Multifunction I/O Module has 208 AI (16 Bit resolution, 3.8 MS/s sample rate), 2 AO, and 24 DIO. This module offers analog I/O, digital I/O, and four 32-bit counters/clocks for PWM, encoder, frequency, occasion count, and so on. The NI PXIe-6375 gives superior usefulness, utilizing the elite PCI Express bus, and multi-center upgraded application and driver programming. The integrated NI-STC3 timing and synchronization innovation offers advanced timing usefulness that incorporates independent analog and digital timing engines and reactivable estimation assignments. The PXIe-6375 is perfect for a wide assortment of utilizations, from basic data logging to test automation and control. The NI-DAQmx driver and the included configuration utility simplify configuration and estimation.
The NI PXIe-6375 has an Analog Input Ground. These terminals are the reference point for single-ended AI estimations in RSE mode and the bias current return point for DIFF estimations. All ground references, AI GND, AO GND, and D GND, are associated on the gadget. Although AI GND, AO GND, and D GND are associated on the gadget, they are associated by little traces to diminish crosstalk between subsystems. Each ground has a slight contrast in potential.
Programmable Function Interface or Digital I/O Channels can be exclusively arranged as a PFI terminal or a digital I/O terminal. As an input, each PFI terminal can be utilized to supply an external source for AI, AO, DI, and DO timing signals or counter/clock inputs. As for the PFI output, the user can route a wide range of inside AI, AO, DI, or DO timing signals to each PFI terminal. The user can also direct the counter/clock outputs to each PFI terminal. As a port 1 or port 2 digital I/O signal, the user can design each signal as an information or signal.
| Model | PXIe-6375 |
|---|---|
| Part Number | 783634-01 |
| Manufacturer | National Instruments |
| Type | PXI Multifunction I/O Module |
| Single-Ended Analog Input Channels | 208 |
| Differential Analog Input Channels | 104 |
| Maximum Sample Rate | 3.86 MS/s |
| Dimensions | Standard 3U PXI |
| Weight | 7.3 oz. |
| Warranty | 2-3 Year Warranty |
| PXIe-6375 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-6375:
National Instruments PXIe-6375 Frequently Asked Questions
Question: What is the analog input absolute accuracy of the PXIe-6375?
Answer: The analog input absolute accuracy of the PXIe-6375 is 1660 uV.
Question: What is the maximum update rate for the NI PXIe-6375?
Answer: The NI PXIe-6375 has a 2.86 MS/s maximum update rate.
Question: How many I/O connectors are on the PXIe 6375 and what type are the connectors?
Answer: There are four 68-pin VHDCI I/O connectors on the PXIe 6375.
Question: What type of electrical signal is measured by the NI PXIe-6375?
Answer: The NI PXIe-6375 measures voltage electrical signals.
PXIe-6375 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PXI-PXI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
NI-62XX-63XX-PINOUT-LABELS-FOR-THE-SCB-68-NOTE-TO-USERS.PDF
NI-62XX-63XX-PINOUT-LABELS-FOR-THE-SCB-68A-NOTE-TO-USERS.PDF
NI-6345-6355-6365-6375-SAFETY-ENVIRONMENTAL-AND-REGULATORY-INFORMATION.PDF
NI-6375-DEVICE-SPECIFICATIONS.PDF
