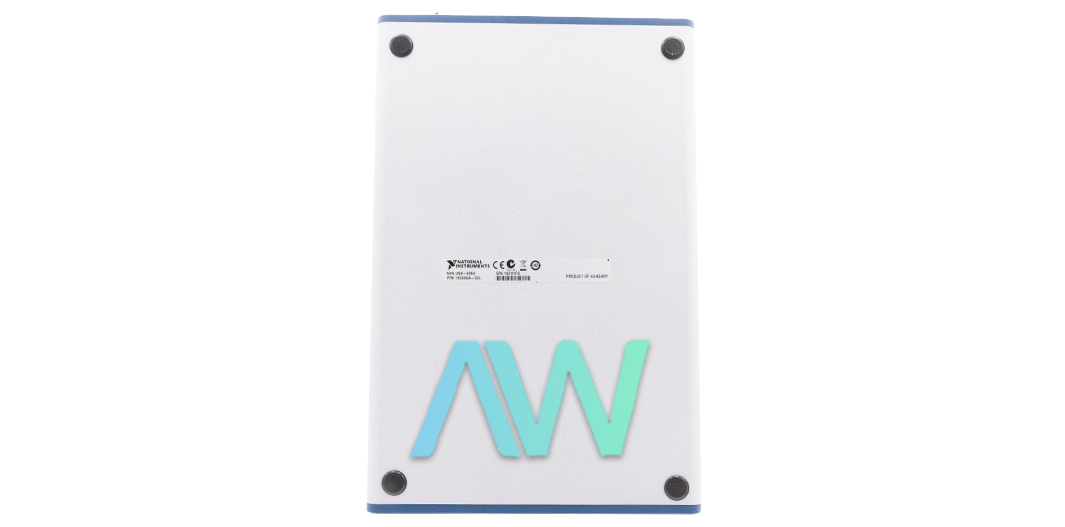

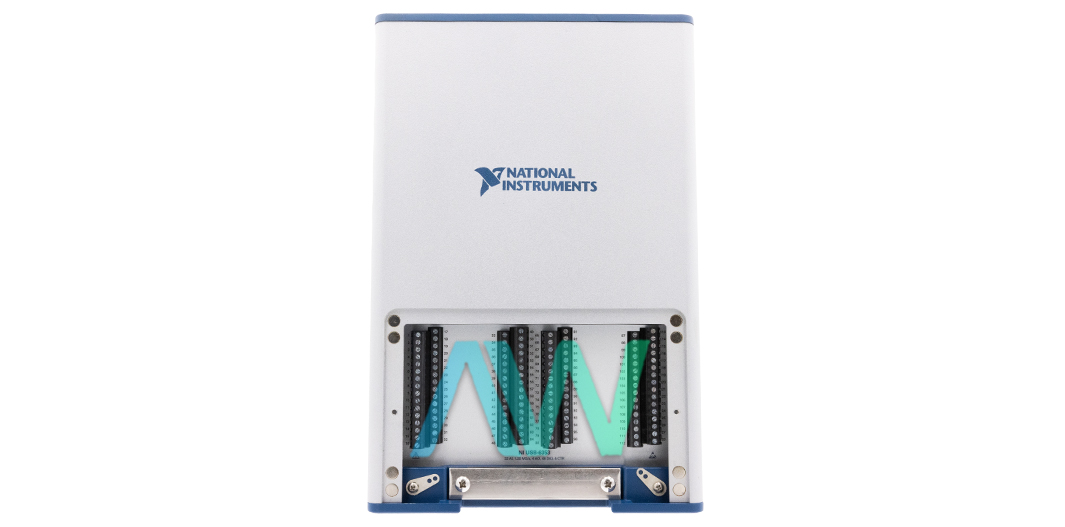

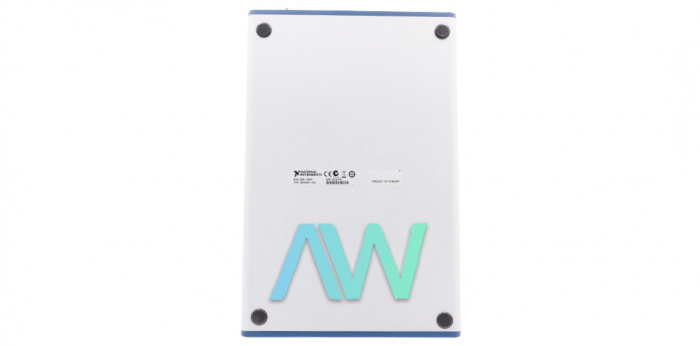

USB-6353 National Instruments Multifunction I/O Device | Apex Waves | Image
USB-6353 National Instruments Multifunction I/O Device | Apex Waves | Image
USB-6353 New
USB-6353 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

USB-6353 National Instruments Multifunction I/O Device | Apex Waves | Image
USB-6353 National Instruments Multifunction I/O Device | Apex Waves | Image
USB-6353 New
USB-6353 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments USB-6353 Multifunction I/O Device

The USB-6353 (Part Number: 781441-01) from NI is a Multifunction I/O Device that includes 32 single-ended analog input channels that can also be operated as 16 differential channels. This device offers an impressive sample rate through its input channels, with 1.25 MS/s as the highest sample rate for a single channel and 1.00 MS/s as the maximum sample rate for multiple channels. The timing resolution of the input channels is 10 ns, and the USB-6353 offers a timing accuracy of 50 ppm.

The USB-6353 Device has one analog trigger which can be utilized for different triggering functions. The source level of the trigger for AI<0.31> is ±Full scale, and the source level of the trigger for APFI<0.1> is ±10 Volts. The analog trigger offers measurements with 16 Bits of resolution, and it is capable of operating within different modes. The most common mode is analog edge triggering. The analog trigger provides an input resistance of 10 kΩ. This Multifunction I/O Device has different protection values for the ‘on’ and ‘off’ modes, with a protection value of ±30 V when the power is on and ±15 V when the power is off.

The NI USB-6353 has four analog output channels which also have 16 bits of resolution for their measurements. These output channels provide digital signals and convert the signals into analog signals. These channels provide output resistance that measures 0.2Ω. The current drive for the output of this high-quality device is ±5 mA. The output channels of the USB-6353 are also capable of working in different modes- the most common one for waveforms being the Periodic Waveform Regeneration mode.

The Multifunction I/O Device has an I/O Device with 128 Screw Terminals. The physical dimensions of the module measure 10.4 × 6.8 × 1.4 in. (26.4 × 17.3 × 3.6 cm) when including the connectors, and it weighs in at 3 lb 2 oz (1.42 kg). The USB-6353 has an operating temperature of 0 to 45 °C and a storage temperature range of -40 to 70 ºC.

ModelUSB-6353
ManufacturerNational Instruments
Part Number781441-01
TypeMultifunction I/O Device
Analog Input Channels32 single-ended or 16 differential
Analog Output Channels4
Digital I/O Channels48
Maximum Sample Rate1.25 MS/s
SeriesX Series
Counter/Timers4
I/O Connector128 Screw Terminals
Operating Temperature0 °C to 45 °C
Dimensions10.4 × 6.8 × 1.4 in.
Weight3 lb 2 oz.
Warranty2-3 Year Warranty
USB-6353 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for USB-6353:

National Instruments USB-6353 Frequently Asked Questions



Question: What is the analog input absolute accuracy of the NI USB-6353?

Answer: The analog input absolute accuracy of the device is 1520 uV.



Question: Which types of data transfers does the NI USB-6353 device have?

Answer: The X Series device has USB Signal Stream and programmed I/O data transfers.



Question: What is the output FIFO size of the NI USB-6353?

Answer: The output FIFO size of the National Instruments USB-6353 is 8,191 samples shared among channels used.



Question: What type of front connector does the USB-6353 have?

Answer: The device has screw terminal front connectors.

Accessory TypeModel NamePart Number
CableSHC68-68-EPM192061-01 (1 m)
192061-02 (2 m)
192061-05 (5 m)
192061-0R5 (0.5 m)
RC68-68187252-01 (1 m)
187252-0R25 (0.25 m)
187252-0R5 (0.5 m)
Shielded Connector BlockSCB-68A782536-01
Shielded BNC ConnectorBNC-2110777643-01
Rack-Mountable AccessoryBNC-2090A (Rackmount)779556-01
Terminal BlockTB-2706779183-01
Connector BlockTBX-68777141-01
CB-68LP (Vertical Mount)777145-01
CB-68LPR (Right Angle Mount)777145-02
