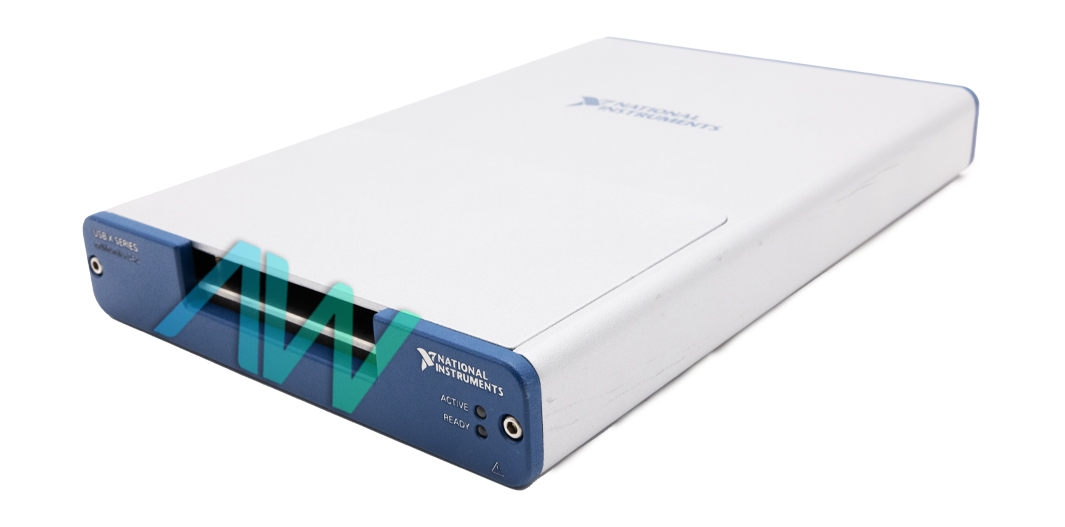

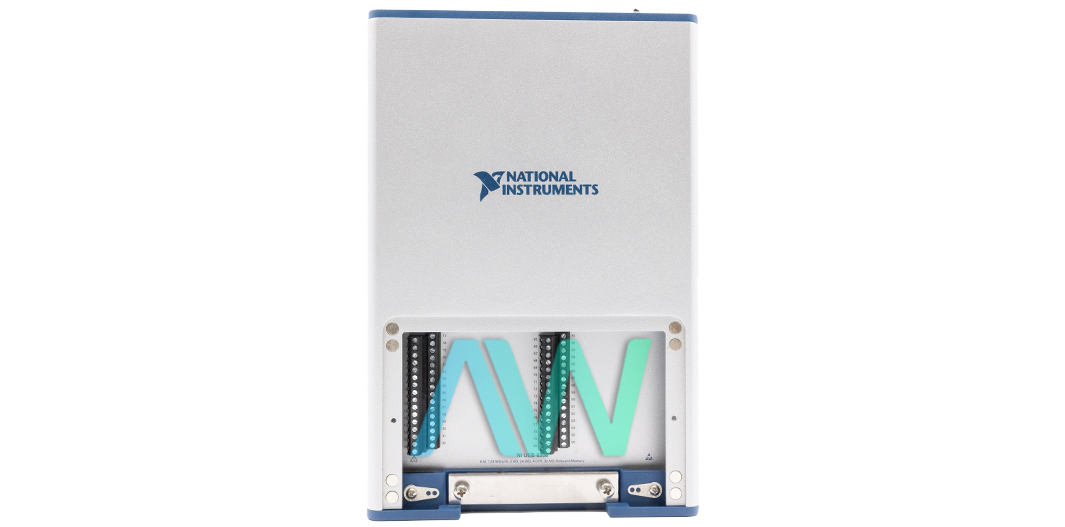

National Instruments USB-6356 Multifunction I/O Device
The NI USB-6356 (Part Numbers: 781444-01, 781444-02, 782261-01) is used for data acquisition. Each terminal of the I/O channels is programmable. Each one of them can be programmed as an input. Each one of them can also be programmed as an output. The digital I/O channels of the USB-6356 provide input voltage protection. The magnitude of this voltage protection is ±20 V on up to 2 pins. The typical magnitude of its resistor is 50 kΩ. The minimum value of the resistor of digital I/O channels is 20 kΩ.
The USB-6356 NI device utilizes Port 0 for the waveform feature. Port 0 is the only terminal used for this purpose. The sample magnitude of measurements is 8-bits. The magnitude of waveform generation is 2,047 samples. The magnitude of waveform acquisition is 255 samples. The waveform characteristics of this USB device are system dependent. These are also dependent on the bus activity. The streaming value from memory is 0 MHz to 10 MHz for the USB-6356.
The NI USB-6356 X Series DAQ Device has 2.2 V as the minimum value of input high voltage. The maximum value of input high voltage is 5.25 Volts. The minimum value for input low voltage is 0 V. The maximum value for input low voltage is 0.8 V. The output high current for P0 is -24 mA maximum. The output high current for PFI/P1/P2 is -16 mA maximum. The value of the positive threshold is 2.2 V maximum. The value of the negative threshold is 0.8 minimum.
| Model | USB-6356 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 781444-01, 781444-02, 782261-01 |
| Type | Multifunction I/O Device |
| Analog Input Channels | 8 differential |
| Analog Output Channels | 2 |
| Maximum Sample Rate | 1.25 MS/s per channel |
| Bus Connector | USB 2.0 |
| Bidirectional Channels | 24 |
| Counters/Timers | 4 |
| Simultaneous Sampling? | Yes |
| Max Update Rate | 3.33 MS/s/ch |
| Dimensions | Screw Terminal: 10.4 × 6.8 × 1.4 in. BNC: 8.0 × 7.3 × 2.7 in. |
| Weight | Screw Terminal: 3 lb 3.4 oz. BNC: 3 lb 6.2 oz. |
| Warranty | 2-3 Year Warranty |
| USB-6356 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for USB-6356:
National Instruments USB-6356 Frequently Asked Questions
Question: Why does the NI USB-6356 have three part numbers?
Answer: The NI USB-6356 has two front connector types available, as well as two analog input FIFO buffer sizes. The first part number, 781444-01, has screw terminal front connectors and 32 MS analog input FIFO buffer size. Part number 781444-02 has screw terminal front connectors and 64 MS analog input FIFO buffer size. Lastly, part number 782261-01 has BNC front connectors and 32 MS analog input FIFO buffer size.
Question: What is the maximum update rate for the USB-6356 NI?
Answer: The USB-6356 NI has a maximum update rate of 3.33 MS/s per channel.
Question: What type of input coupling does the NI USB-6356 X Series DAQ Device have?
Answer: The NI USB-6356 X Series DAQ Device has DC input coupling.
Question: What is the NI USB-6356 driver called?
Answer: The NI USB-6356 driver is NI-DAQmx.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHC68-68-EPM | 192061-01 (1 m) |
| 192061-02 (2 m) | ||
| 192061-05 (5 m) | ||
| 192061-0R5 (0.5 m) | ||
| RC68-68 | 187252-01 (1 m) | |
| 187252-0R25 (0.25 m) | ||
| 187252-0R5 (0.5 m) | ||
| Shielded Connector Block | SCB-68A | 782536-01 |
| Shielded BNC Connector | BNC-2110 | 777643-01 |
| Rack-Mountable Accessory | BNC-2090A (Rackmount) | 779556-01 |
| Terminal Block | TB-2706 | 779183-01 |
| Connector Block | TBX-68 | 777141-01 |
| CB-68LP (Vertical Mount) | 777145-01 | |
| CB-68LPR (Right Angle Mount) | 777145-02 | |
| - | - | - |
*This device does not support SCC Carriers, and only supports differential (DIFF) input mode.
