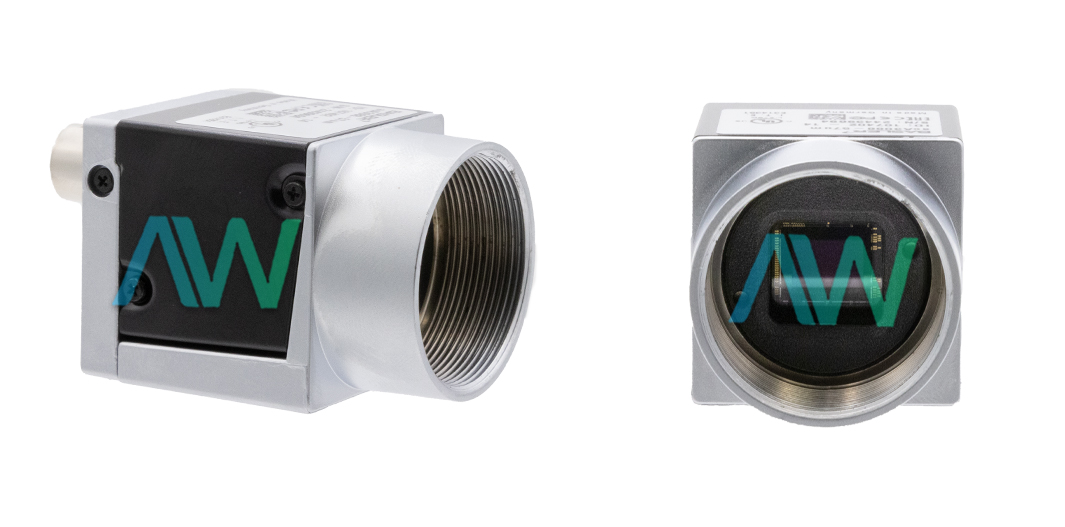

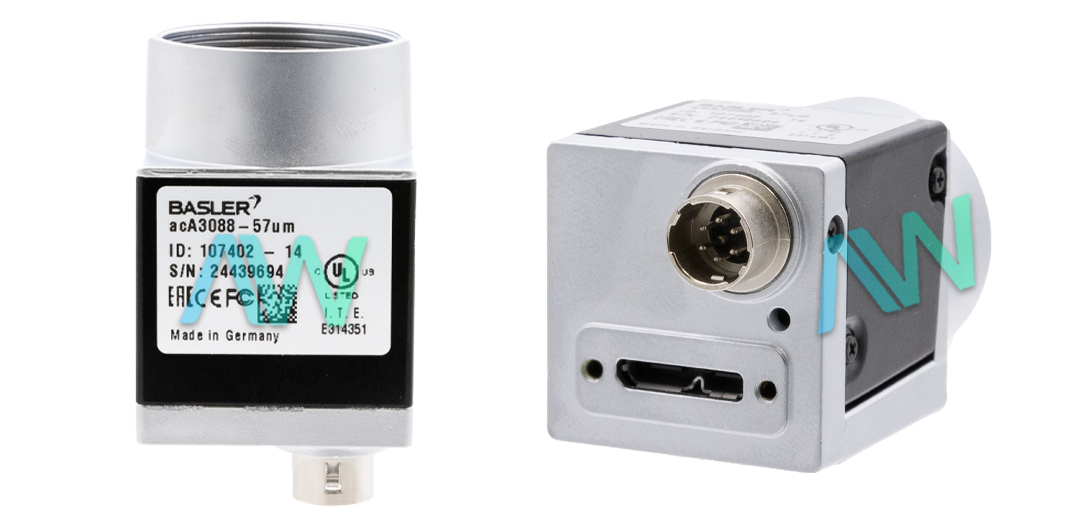

NI acA3088-57um Area Scan Camera
The acA3088-57um is a Basler Ace Area Scan Camera by National Instruments. The NI acA3088-57um Area Scan Camera can be purchased with the part number 787074-01. National Instruments recommends using Pylon Software Suite for configuration of this Area Scan Camera. Windows operating systems are compatible with using the acA3088-57um. Linux and Mac operating systems are also compatible with the NI acA3088-57um.
The NI acA3088-57um Area Scan Camera has been designed with an IMX178 camera sensor. The sensor works with 6 MP resolution. The image sensor includes a frame rate of 57 fps. The acA3088-57um has a monochrome image sensor and does not have color capability. The NI acA3088-57um has similar features to the NI acA3088-57uc. The only difference between these two cameras is the color of the image sensor. Images with 3088 x 2064 pixels can be captured by the NI acA3088-57um. Industries with machine vision applications utilize the National Instruments acA3088-57um Area Scan Camera.
The NI acA3088-57um can be interfaced with PCs by using the USB3 Vision camera interface. The acA3088-57um Area Scan Camera is developed with a Sony camera sensor. The camera sensor is built with CMOS technology and has a rolling shutter. The National Instruments acA3088-57um is comprised with a C mounted lens. The NI acA3088-57um Area Scan Camera contains only one digital input and one digital output. The digital inputs/outputs of the acA3088-57um are opto-isolated. The NI acA3088-57um Area Scan Camera has been prepared with two fast configuring GPIO as well.
| Model | acA3088-57um |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 787074-01 |
| Type | Area Scan Camera |
| Camera Interface Type | USB3 Vision |
| Camera Sensor | IMX178 |
| Image Sensor Color | Monochrome |
| Shutter Type | Rolling |
| Resolution | 6 MP |
| Pixel Size | 2.4 |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| acA3088-57um Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
