778241-01, 62 Screw Terminal, 42 V, TB-2705 Terminal Block

Rated 4.8/5 | 11 ratings

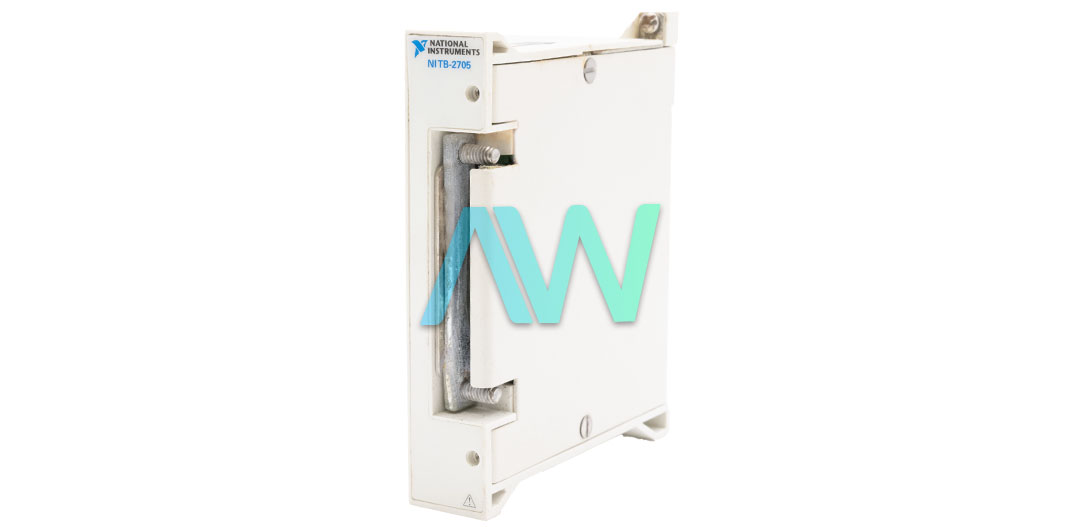

National Instruments 778241-01 Terminal Block | Apex Waves | Image

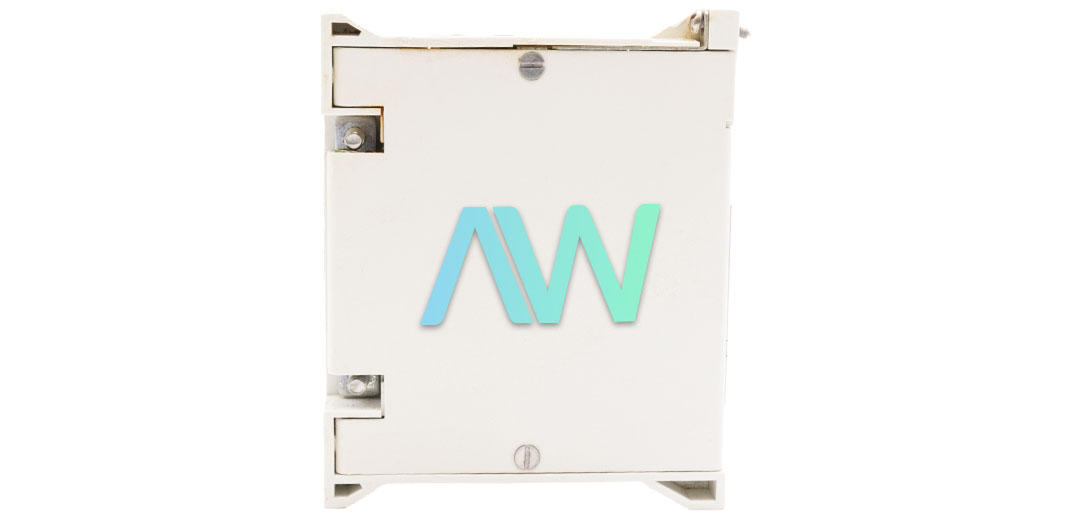

National Instruments 778241-01 Terminal Block | Apex Waves | Image
778241-01 New
778241-01 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

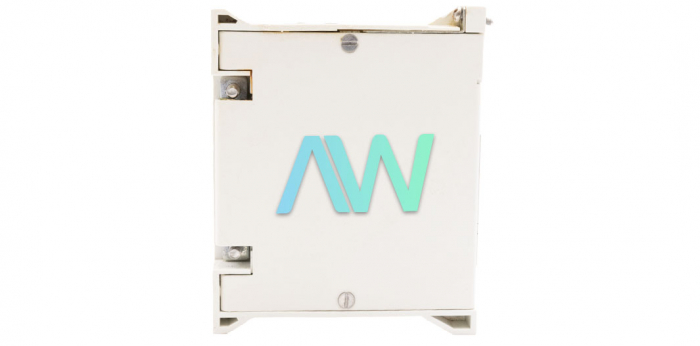

National Instruments 778241-01 Terminal Block | Apex Waves | Image
National Instruments 778241-01 Terminal Block | Apex Waves | Image
778241-01 New
778241-01 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 778241-01 Terminal Block

National Instruments part number 778241-01 is an identifying part number for the TB-2705, a Terminal Block. This Terminal Block is an accessory for 68-pin PXI E Series and S Series devices by National Instruments. It provides easy access to analog signal inputs and supports digital input/output signals. The 778241-01 also includes triggering capabilities and can be accessed with counter/timer signals. The National Instruments 778241-01 Terminal Block is designed for connecting to PXI data acquisition modules. It can be directly attached to the front panels of PXI E Series devices. It is also suitable for connecting waveform generation devices, enabling connections for analog I/O signals, counter/timer signals, and digital input/output signals without the need for additional cables.

The part number 778241-01 is a terminal block assembly with a printed circuit board, 62 screw terminals, and a plastic enclosure featuring a strain relief. It connects directly to the front panel of National Instruments E Series and waveform generation devices, eliminating the need for an external cable. Moreover, this terminal block allows for easy connection of analog input, analog output, counter-timer, and digital I/O signals to your National Instruments device. The 62 screw terminals provide access to every pin on the device, except for some common digital ground signals. It also includes a shielded strain-relief to secure your I/O wires and ensure a proper chassis-ground connection.

The NI 778241-01 is not intended for input voltages above 42 V. Even with a voltage divider that reduces the voltage to within the input range of the DAQ device, input voltages over 42 V can damage the Terminal Block, connected devices, and the host computer. Overvoltage can also pose an electric shock hazard to the operator. National Instruments has declared obsolete status for the part number 778241-01, however, it is still available for purchase and repairs at the Apex Waves Website.

Part Number778241-01
Model RangeTB-2705
Part TypeTerminal Block
Screw Terminals62
I/O ConnectorOne 68-position female connector
Compatible DevicesPXI E Series and waveform generation devices
Warranty2-3 Year Warranty
Maximum Voltage42 V
EMC/EMICE, C-Tick and FCC Part 15
(Class A) Compliant
Dimensions7.5 by 4.125 by 1.38 in.
