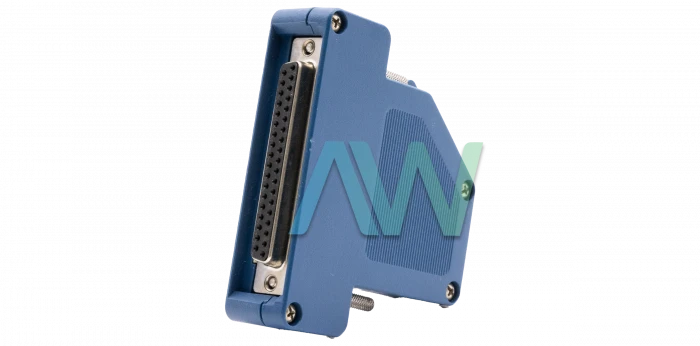

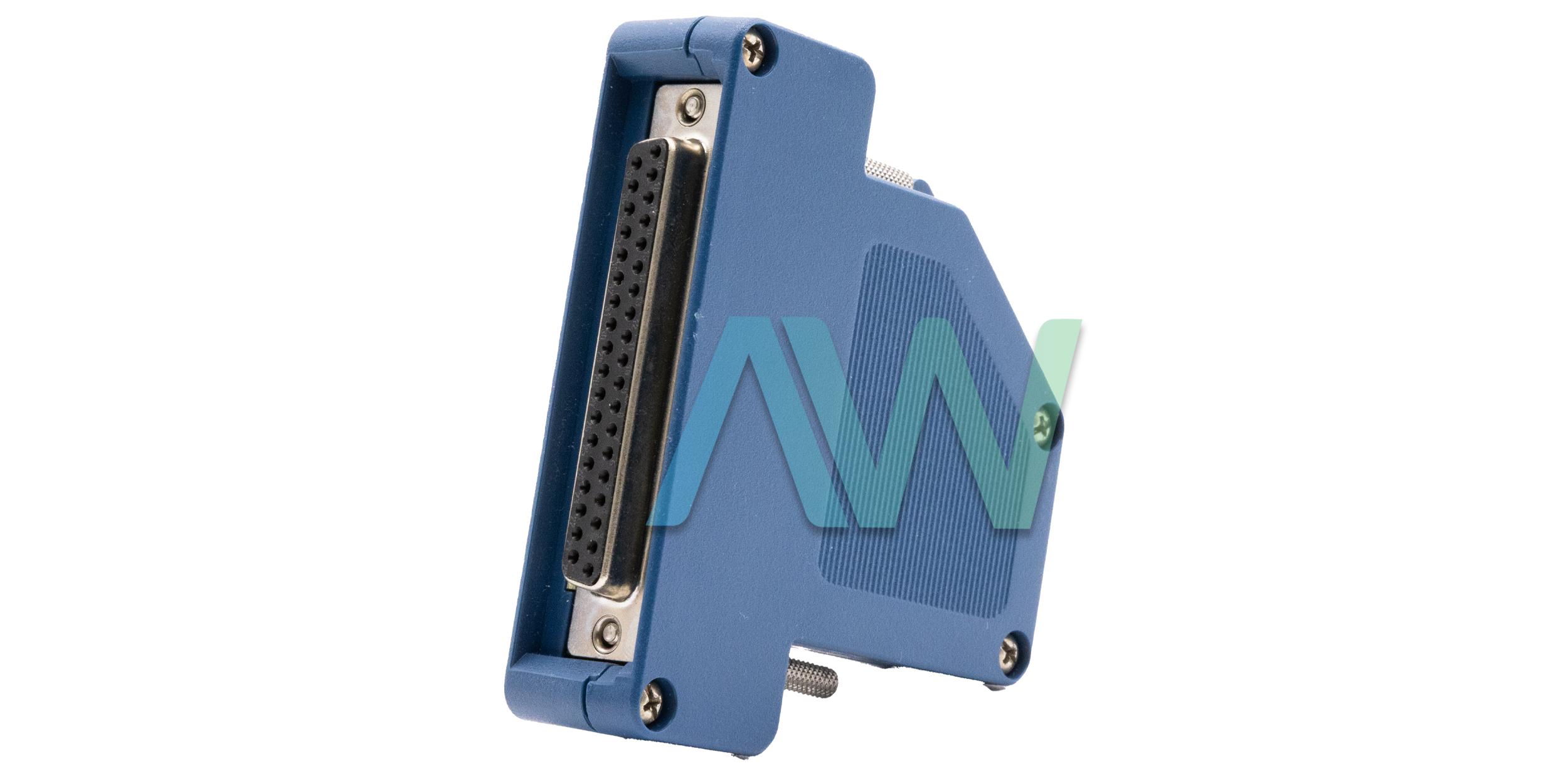

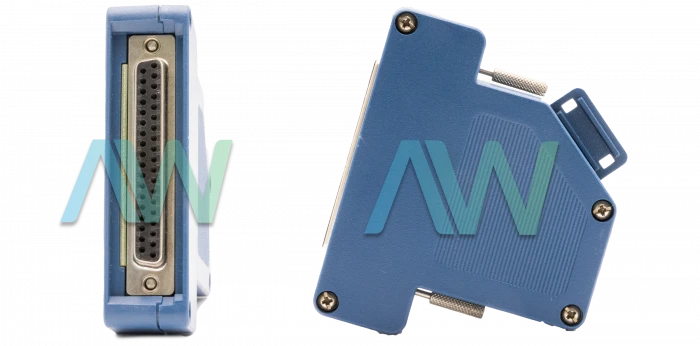

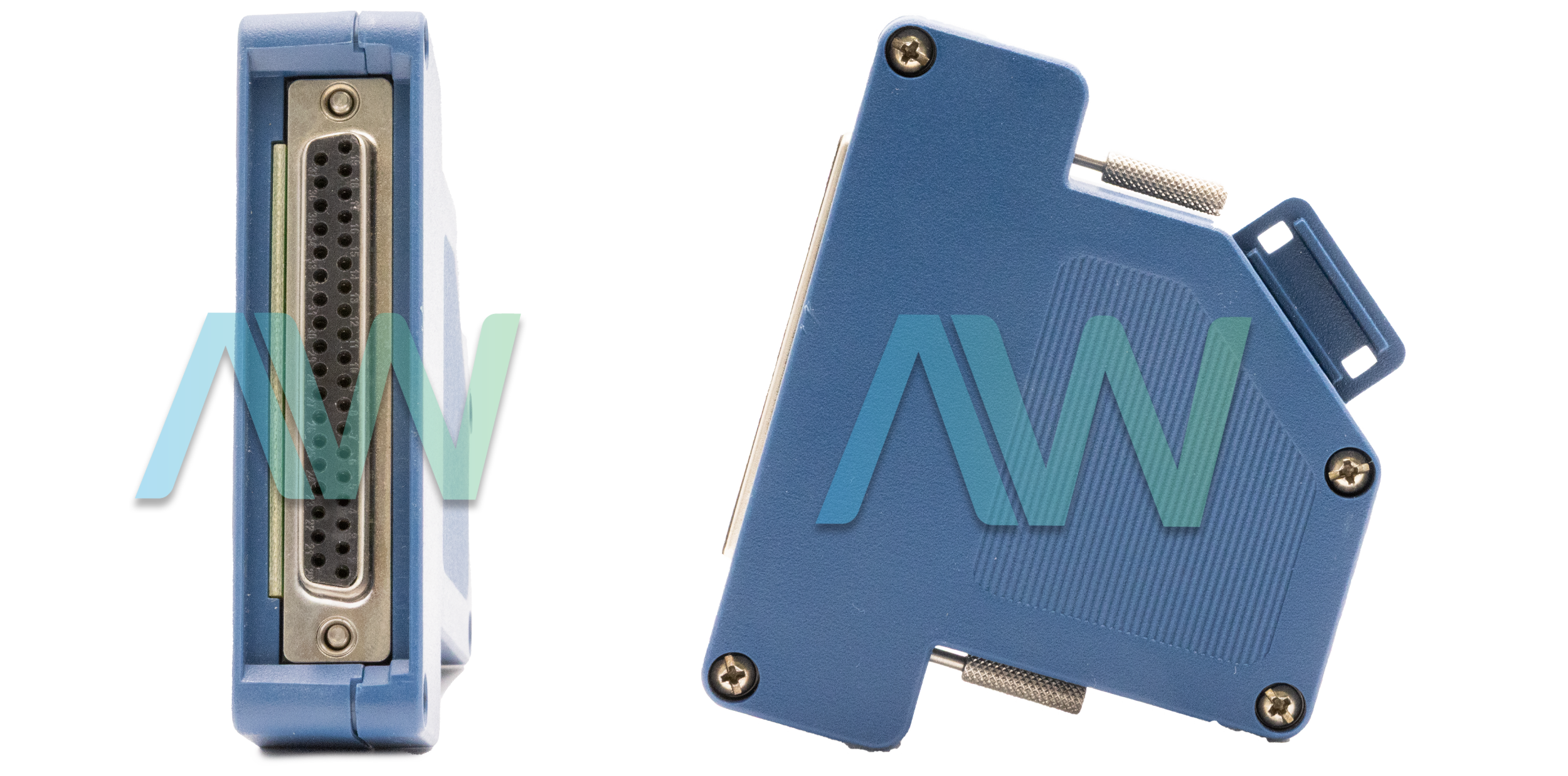

National Instruments NI-9923 Terminal Block
The NI-9923 (Part Number: 781503-01) is a 37-Pin Terminal Block. This Terminal Block is designed with a 37-Pin, Female Screw Terminal Front End Connection and a 37-Pin, Female D-SUB Back End Connection. The NI 9923 can be utilized in the construction of customized cables for modules from the C Series with 37-Pin D-SUB connectors. This Terminal Block is fully compatible with the devices from National Instruments Compact FieldPoint family. You can deploy this device in systems where the maximum operating voltage remains under 60 VDC/30 Vrms.
The NI-9923 facilitates optimum cable positioning since it comes equipped with integrated holes for strain relief. The female D-SUB connector of this Terminal Block can be mated with a male D-SUB connector. A set of jackscrews is also provided to ensure firm connectivity if it is intended to be used as part of a high vibration system. The screw-terminals of the NI-9923 can easily be accessed after the removal of the four captive screws. The NI device weighs 1 lb.
| Model | NI-9923 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 781503-01 |
| Type | Terminal Block |
| Front End Connection | 37-Pin, Female Screw Terminal |
| Back End Connection | 37-Pin, Female D-SUB |
| Mounting Options | C Series Module |
| Voltage Range | 60 VDC, 30 Vrms |
| Weight | 1 lb. |
| Warranty | Three Year Warranty |
| NI-9923 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for NI-9923:
National Instruments NI-9923 Frequently Asked Questions
Question: What is the operating temperature of the NI-9923?
Answer: The operating temperature range is –40 °C to 70 °C
Question: What is the maximum voltage of the NI-9923?
Answer: The max voltage of the NI-9923 is 30 Vrms/42 Vpk/60 VDC
Question: How much does the NI-9923 weigh?
Answer: The NI-9923 weighs 2.9 oz
