National Instruments NI-9924 Terminal Block

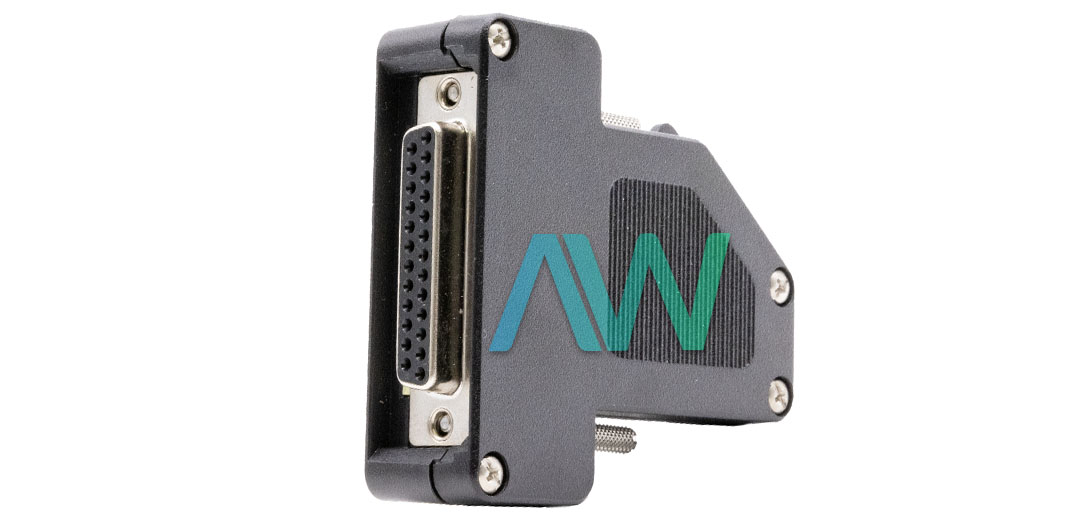

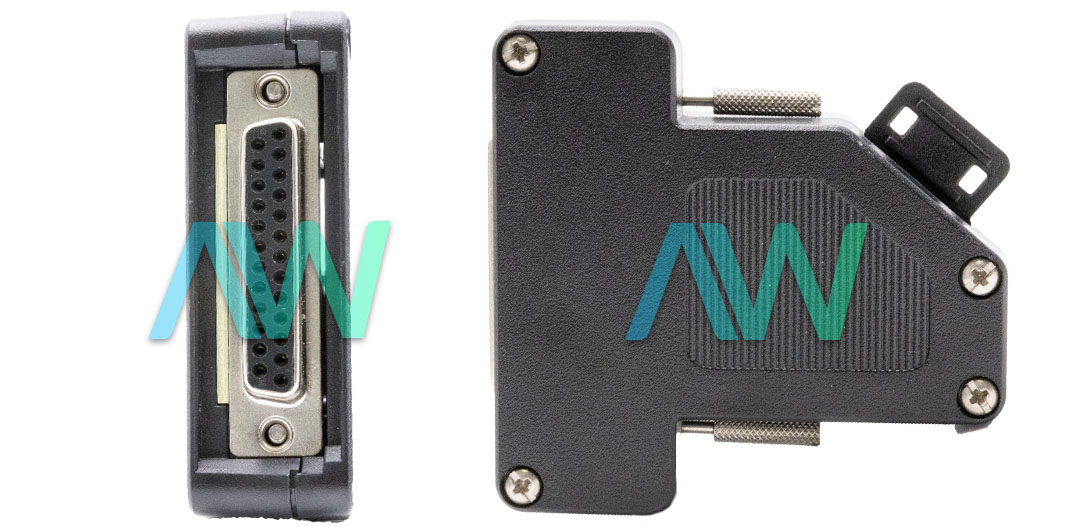

The NI-9924 (Part Number: 781922-01) is a connector block from National Instruments. This accessory offers a 25-pin DSUB to screw-terminal connection. The NI 9924 is designed to provide connections for the 25-pin DSUB modules from National Instruments C Series. This accessory consists of a plastic enclosure with integrated screw terminals and a female D-SUB connector. Thus, you can easily plug this connector into any 25-pin DSUB module.
The NI-9924 weighs less than 1 lb. (65 g) and is designed to operate with a maximum 1 ampere current per channel. The screw-terminal of this accessory is designed to handle 16 AWG to 26 AWG copper wires. The maximum allowable operating voltage for this accessory is 30 Vrms or 60 VDC. The NI 9924 has an operating temperature range of –40 °C to 70 °C. The NI-9924 comes with 2 jackscrews to ensure firm connectivity. Moreover, it has built-in holes for strain relief.
| Model | NI-9924 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 781922-01 |
| Type | Terminal Block |
| Mounting Type | Front-mounting |
| Compatible Models | 25-Pin, D-SUB modules |
| Maximum Voltage | 30 Vrms/42 Vpk/60 VDC |
| Maximum Current Rating | <1 A per channel |
| Weight | 1 lb. |
| Warranty | Three Year Warranty |
| NI-9924 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for NI-9924:
National Instruments NI-9924 Frequently Asked Questions
Question: What is the voltage range of the NI-9924?
Answer: The voltage range of the NI-9924 is 60 VDC, 30 Vrms
Question: What are the back and front end connections of the NI-9924?
Answer: The NI-9924 has a 25-pin Female Screw Terminal front end connection and a 25-pin Female D-Sub back end connection.
Question: What are the mounting options for the NI-9924?
Answer: The NI-9924 has C Series Module mounting options.
