National Instruments RM-24999 Rack-Mount Terminal Block

The RM-24999 is a Rack-Mount Terminal Block. The RM-24999 is fabricated by National Instruments. National Instrument manufactured the RM-24999 with the part number 785840-01. The NI RM-24999 is designed for use with the PXIe-4330 and PXIe-4331 PXI Strain/Bridge Input Modules. The RM-24999 is built as a 1U Rack-Mount Terminal Block. The RM-24999 is compatible with the SH96F-96M-5 shielded cable, which can be utilized to swiftly connect to the PXI modules. The options for the cable length include 1 meter, 3 meters, and 5 meters.

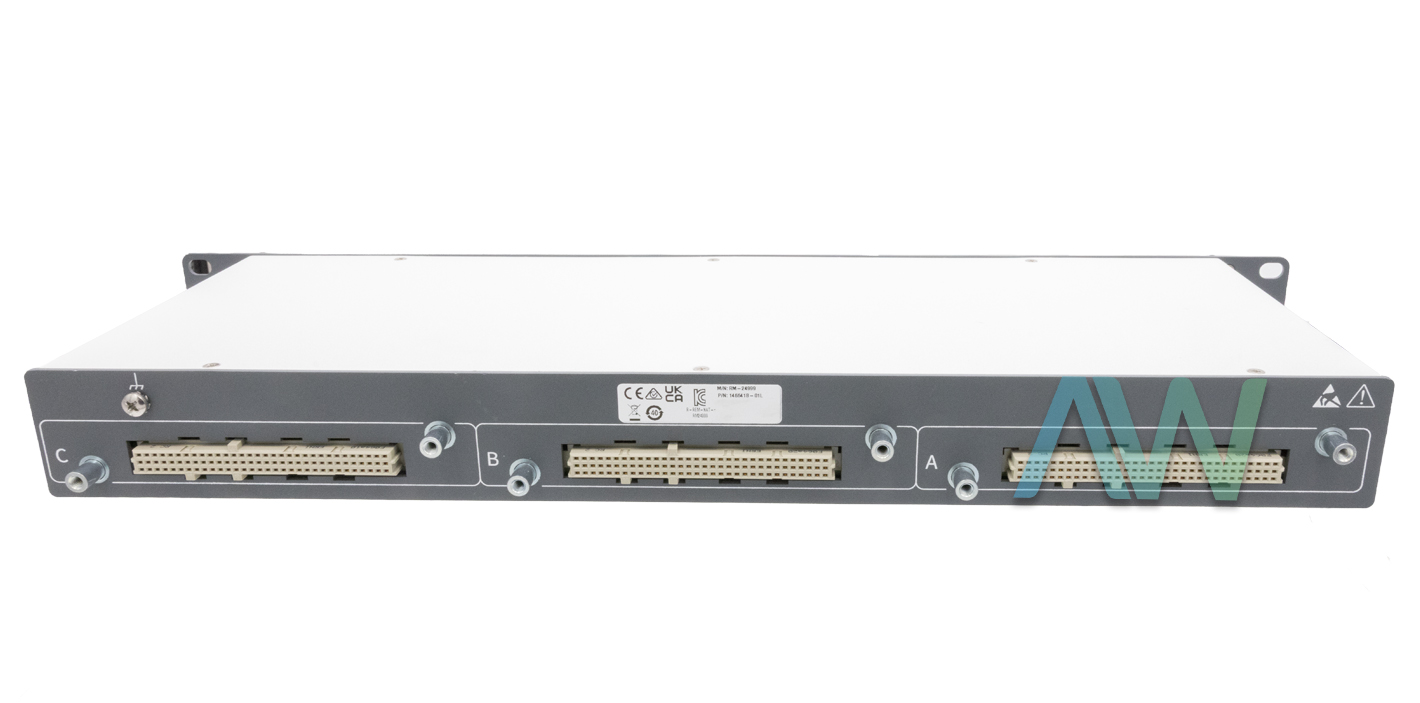

The National Instruments RM-24999 Rack-Mount Terminal Block has a 96-Pin Female DIN back end connector and a 10-Pin Female RJ50 front end connector. The NI RM-24999 is designed for 120 Ω, 350 Ω, and 1 KΩ bridge completion on the PXIe-4330 and PXIe-4331 PXI Strain/Bridge Input Modules. The RM-24999 offers direct connectivity options. The RM-24999 Terminal Block utilizes the RJ-50 connector to decrease the set-up time of sensors. The NI RM-24999 is capable of using additional channels as per application requirements without reducing the sampling rate based on wide bandwidth.

The NI RM-24999 Rack-Mount Terminal Block provides various synchronization solutions that can be matched with high application requirements. The RM-24999 Rack-Mount Terminal Block is included with the SC Express Series that includes combination DAQ and signal conditioning functionality in one PXI Express module, helping the user reach optimal synchronization, preciseness, and throughput. The National Instruments RM-24999 Rack-Mount Terminal Block works within the operating temperature range from 0 to 55 °C.

ModelRM-24999
ManufacturerNational Instruments
Part Number785840-01
TypeRack-Mount Terminal Block
Compaptible ModulesPXIe-4330 and PXIe-4331
Back End Connection96-Pin Female DIN
Front End Connection10-Pin Female RJ50
Input Channels8 analog input channels per position
Dimensions19 in. x 1.730 in. x 6.150 in.
Weight56.3 oz.
Warranty2-3 Year Warranty
RM-24999 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
