National Instruments RM-4304 Terminal Block
The RM-4304 (Part Number: 783873-01) Terminal Block from National Instruments is intended for use in industrial automation applications. Its 32 analog input channels allow for accurate data collecting across a broad temperature range (-55 °C to 55 °C), guaranteeing dependable operation even in demanding conditions. Accurate signal measurement is ensured by its AI± differential input, which has an offset voltage of 10 μV max at 23 °C ±5 °C and 4 μV typ at the same temperature range.
At different temperatures, the offset voltage stability of 0.5 μV/°C max and 0.05 μV/°C guarantees reliable operation. Calibration accuracy is improved by the offset matching of 2 μV between AI± and CAL±. The terminal block incorporates electromechanical relay switches with a mechanical life expectancy of 5 × 10^7 cycles and electrical life expectancy of 2 × 10^5 cycles, ensuring durability and reliability. It also includes RJ50 receptacles for easy connectivity and features a mean number of insertions before failure of 500.
It is made to function in an environment as robust as possible, operating at a maximum altitude of 2,000 meters and withstanding shock up to 30 g peak half-sine with an 11 ms pulse. In addition, it can withstand random vibrations between 5 and 500 Hz, 0.3 g rms when operating, and 2.4 g rms when not operating. It offers protection against detrimental interference in industrial situations while adhering to regulatory EMC criteria. But, in order to reduce the chance of interference, users should carefully follow the installation guidelines, particularly in home or business settings.

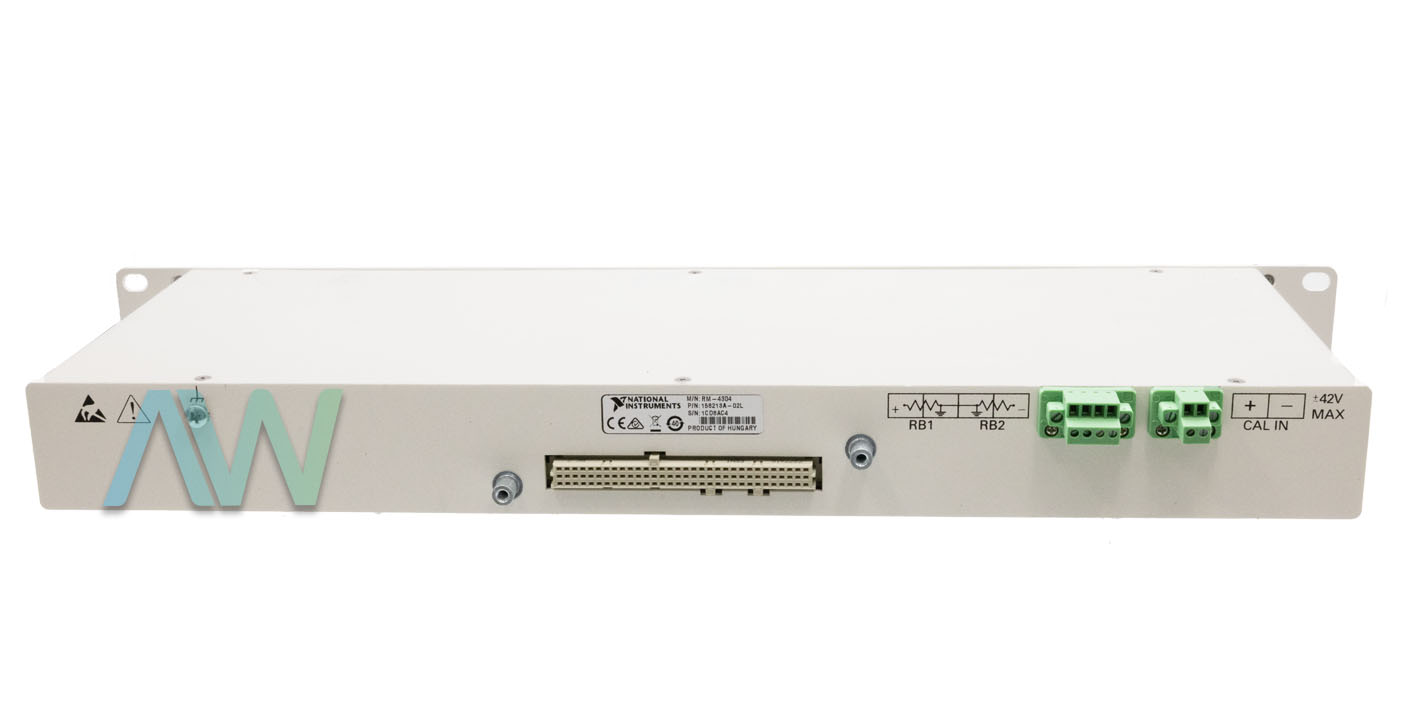

The RJ50, BNC, 96-pin DIN, and COMBICON slots on the RM-4304 Terminal Block provide flexible connectivity options to accommodate different industrial automation configurations. It is noncondensing and works in the 10% to 90% relative humidity range. It can be stored between -40 and 71 degrees Celsius.
| Model Name | RM-4304 |
|---|---|
| Part Number(s) | 783873-01 |
| Number of Channels | 32 |
| Offset Voltage (Typical) | 4 μV @ 23 °C ±5 °C |
| Offset Voltage (Maximum) | 10 μV @ 23 °C ±5 °C |
| Offset Voltage Stability | 0.05 μV/°C |
| AI± to CAL± Offset Matching | 2 μV |
| CAL IN Voltage | ±42 V |
| Mechanical Switch Life | 5 × 107 cycles |
| Electrical Switch Life | 2 × 105 cycles |
| Mean Insertions before Failure | 500 |
| Maximum Altitude | 2,000 m |
| Operating Temperature Range | 0 °C to 55 °C |
| Relative Humidity Range | 10% to 90%, Noncondensing |
Associated part numbers for RM-4304:
National Instruments RM-4304 Frequently Asked Questions
How many channels does the RM-4304 have?
The RM-4304 has 32 analog input channels.
What connectors are available on the RM-4304?

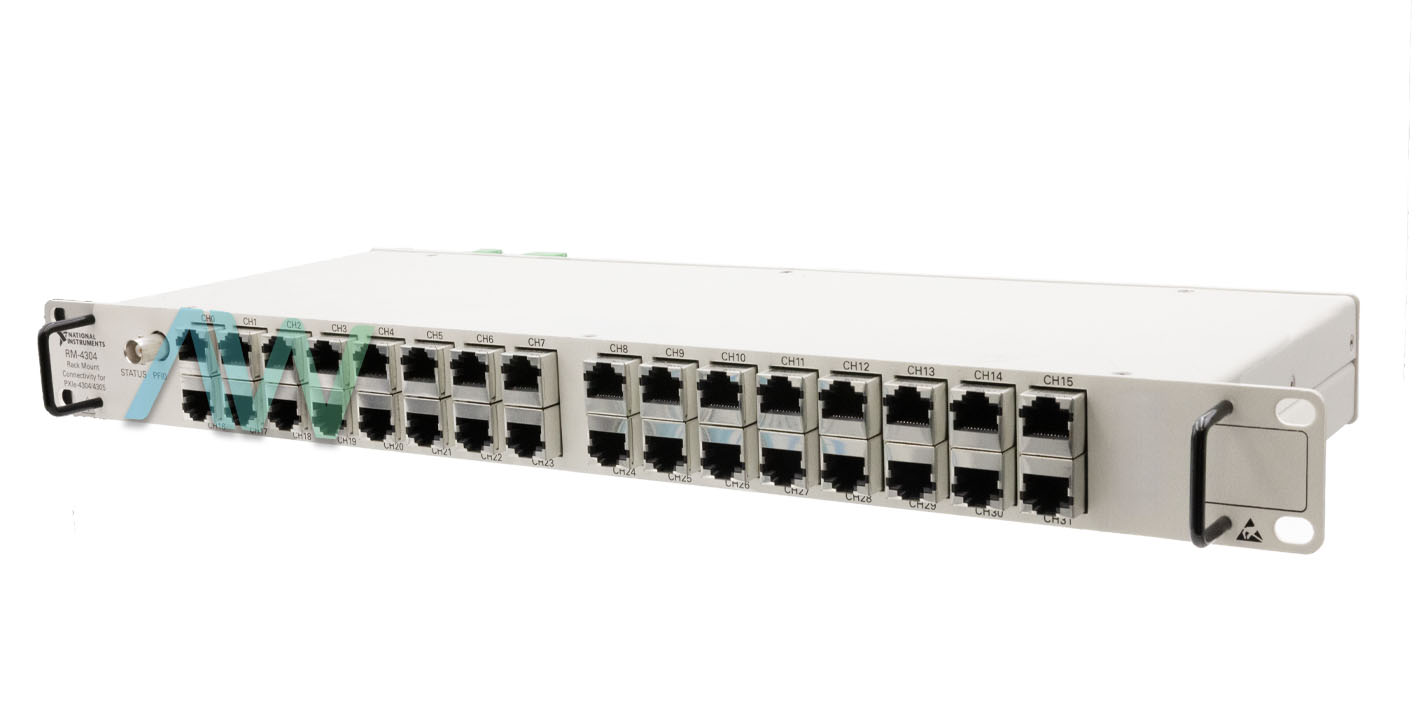

The RM-4304 features 32 RJ50 connectors, one BNC, one 96-pin DIN, two COMBICON 2-position, and one COMBICON 4-position connector.
How do I connect the RM-4304 to a PXI module?
You can connect the RM-4304 to a PXI module using a SH96-96-2 Cable with a male and a female connector.
