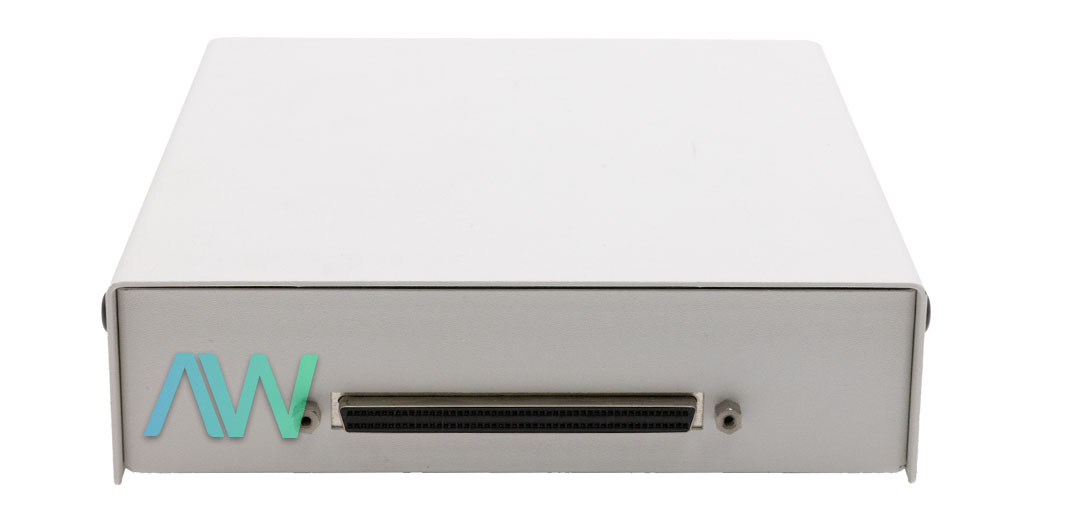

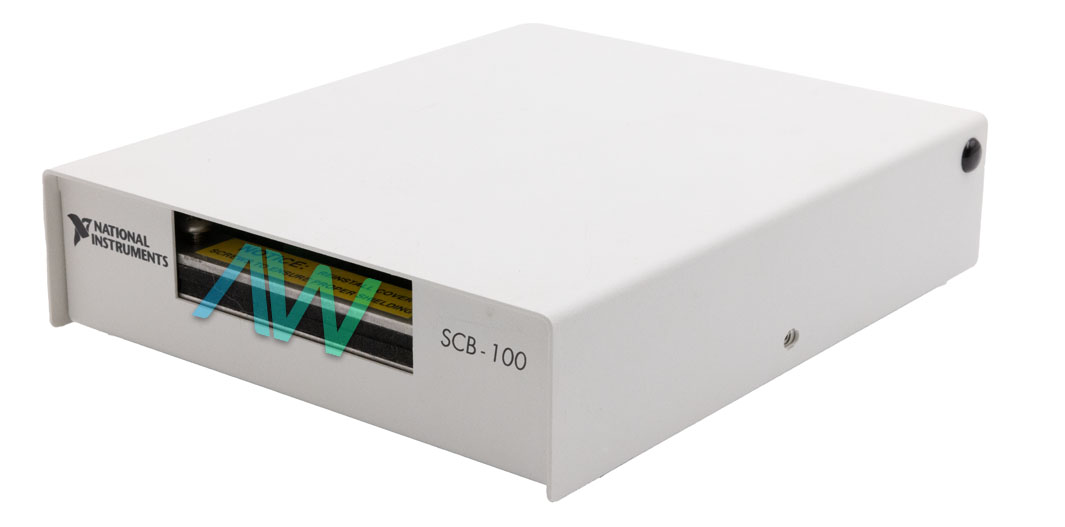

National Instruments SCB-100 Shielded Connector Block
The shielded I/O connector block SCB-100 (Part Numbers: 776990-01, 182788C-01) from National Instruments is made to interface I/O signals with 100-pin connector data acquisition devices. In industrial automation applications, this connector block ensures dependable signal transfer by enabling robust, low-noise signal termination. The SCB-100 is a shielded board with 100 screw terminals that interfaces easily with products like the AT-MIO-64E-3 and AT-MIO-16DE-10 that use the 0.050 series shielded D type I/O connector.
The SCB-100 makes signal wire connection easier with its 100 screw terminals, which include one No Connect (NC). The SCB-100 is perfect for using with thermocouples because it has a cold-junction compensation temperature sensor, which ensures precise temperature readings. With an amazing precision of ±0.5 °C, this temperature sensor outputs 10 mV/°C. Even without signal conditioning installed, the SCB-100 assures efficient operation with a just 10 mA of power consumption at +5 VDC ±5%.
In order to provide safe connections, the screw terminals handle wire gauges ranging from 14 AWG to 26 AWG and have a torque requirement of 0.5 N⋅m to 0.6 N⋅m (4 in.⋅lb to 5 in.⋅lb). The SCB-100 is a small but sturdy device, measuring 17.93 cm × 15.37 cm × 4.50 cm (7.06 in. × 6.05 in. × 1.77 in.) and weighing 897 g (1 lb 15.6 oz). It is appropriate for a variety of industrial settings due to its operating temperature range of 0 °C to 55 °C and storage temperature range of -55 °C to 125 °C.
It also has a relative humidity range of 5% to 90% noncondensing. The SCB-100 supports various features including direct feedthrough mode, thermocouple measurements, open thermocouple detection, current input, filtering, and voltage dividers. All additional features are supported in direct feedthrough mode. It is required to set the DIP switches to direct feedthrough mode when utilizing the SCB-100.
| Model | SCB-100 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 776990-01, 182788C-01 |
| Type | Shielded Connector Block |
| Screw Terminals | 101 |
| Cold-Junction Sensor Accuracy | ±0.5 °C |
| Cold-Junction Sensor Output | 10 mV/°C |
| I/O Connectors | One 100-pin male 0.050 series shielded D-type connector |
| Dimensions | 7.7 by 6.0 by 1.8 in. |
| Weight | 1 lb 15.6 oz. |
| Warranty | Three Year Warranty |
| SCB-100 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for SCB-100:
National Instruments SCB-100 Frequently Asked Questions
Question: What are the switch settings for the SCB-100?
Answer: Before you can connect an IMAQ D100100 cable to an IMAQ SCB-100 connector block, the switch settings on the IMAQ SCB-100 must be changed to the generic screw terminals switch configuration.
Question: How many screw terminals does the SCB-100 use?
Answer: The SCB-100 has 101 screw terminals, including one no-connect terminal. There are all I/O signals available at the terminals.
Question: At what temperature should the SCB-100 component be operated?
Answer: The operating environment temperature of the SCB-100 ranges from 0 - 70 degrees celsius.
