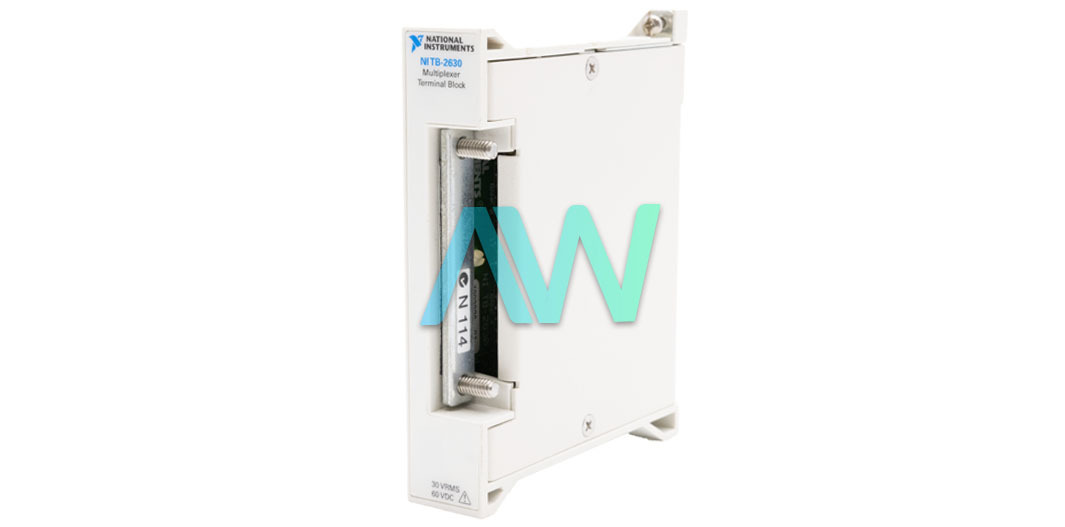

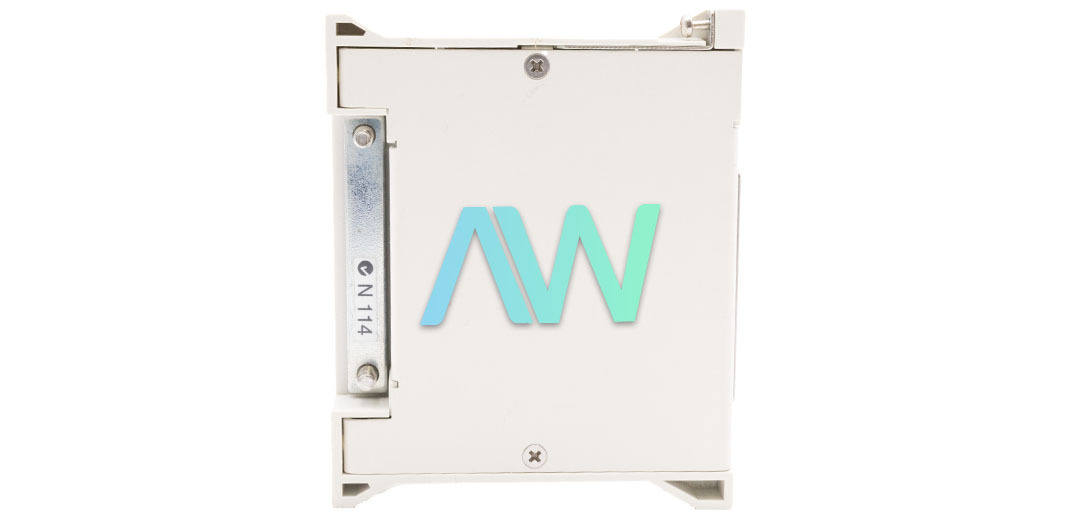

NI TB-2630B Terminal Block
The NI TB-2630B (Part Numbers: 151831-01L and 781687-01) is a Front-Mountable Terminal Block. This Terminal Block is specifically designed to be used with the PXI-2530B Switch Module. You can use the TB-2630B to configure the PXI-2530B Switch Module in various arrangements including: independent; 1-wire, 128 x 1 multiplexer; 1-wire, dual 64 x 1 multiplexer; 1-wire, quad 32 x 1 multiplexer; 1-wire, octal 16 x 1 multiplexer; 4-wire, dual 16 x 1 multiplexer; 4-wire, 32 x 1 multiplexer; 2-wire, 64 x 1 multiplexer; 2-wire, dual 32 x 1 multiplexer; and 2-wire, quad 16 x 1 multiplexer.
The NI TB-2630B Terminal Block comes with shielding. Thus, you can consider this Terminal Block for deployment in high electrical noise areas, as well as for complying with the EMF related specifications of your switching hardware. This Terminal Block comes with ribbon cable headers to connect signals to the switch. It is important to understand that the TB-2630B is only compatible with the PXI-2530B and cannot be used with the PXI-2530.
| Model | TB-2630B |
|---|---|
| Manufacturer | NI |
| Part Numbers | 151831-01L and 781687-01 |
| Type | Terminal Block |
| Compatible Model | PXI-2530B |
| Connection | Ribbon cable headers and screw terminals |
| Configurations | 1-wire, 128 x 1 multiplexer; 1-wire, dual 64 x 1 multiplexer; 1-wire, quad 32 x 1 multiplexer; 1-wire, octal 16 x 1 multiplexer; 2-wire, 64 x 1 multiplexer; 2-wire, dual 32 x 1 multiplexer; 2-wire, quad 16 x 1 multiplexer; 4-wire, 32 x 1 multiplexer; 4-wire, dual 16 x 1 multiplexer; independent |
| Shielded | Yes |
| Warranty | 2-3 Year Warranty |
| TB-2630B Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
