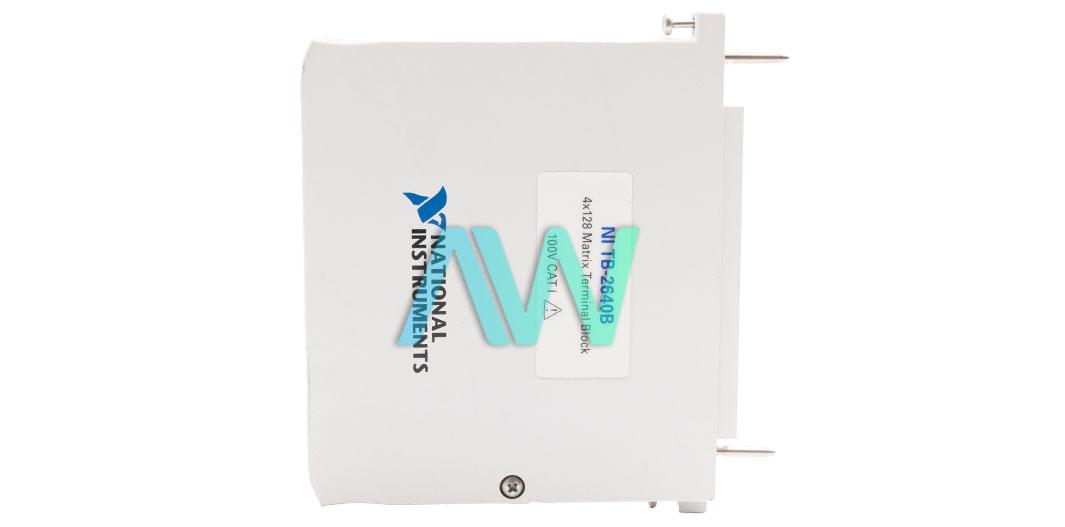

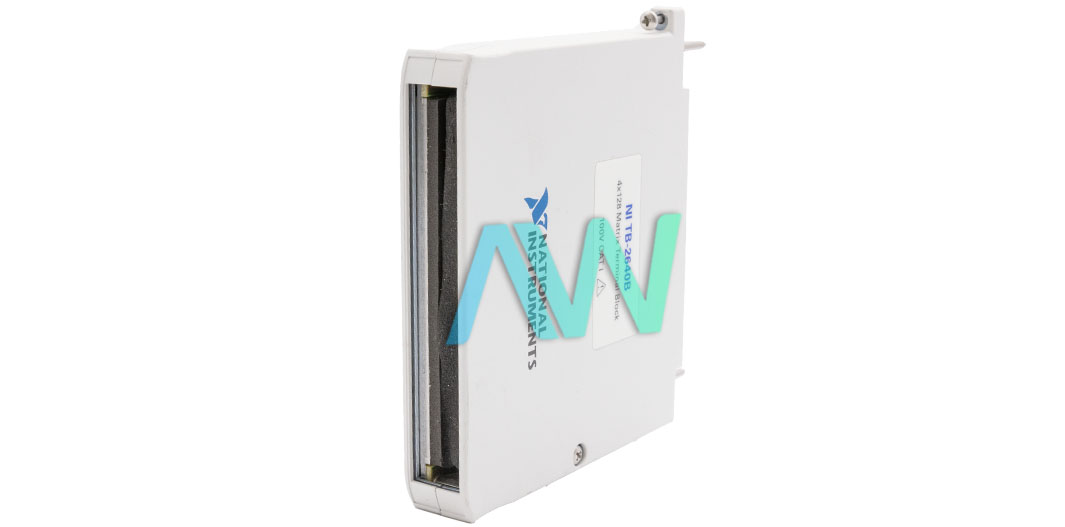

NI TB-2640B Terminal Block
The TB-2640B (Part Numbers: 153636-01L, 153636-02L, 782385-01, and 782385-02) is a National Instruments Terminal Block that can be used to create a 1-wire, 4 x 128 matrix. This Terminal Block is designed for the NI-2532B Switch Module. The deployment of the TB-2640B requires a PXI or PXIe chassis with the NI-2532B Switch Module, a compatible cable kit, and a connector block (optional). 100 V and 60 VDC cable kits are available for this Switch Module. In addition, for matrix expansion, a row connection cable kit can also be acquired for the TB-2640B.
The SCB-264X is a screw terminal connector block that can be used if direct cabled connectivity between the DUT and the Switch Module is not possible. This Switch Module comes with four 34-pos column headers and two 16-pos row headers. The row and column headers incorporated in this Terminal Block are from the FTSH Series by Samtec. The NI TB-2640B weighs 0.73 lbs.
| Model | TB-2640B |
|---|---|
| Manufacturer | NI |
| Part Numbers | 153636-01L, 153636-02L, 782385-01, and 782385-02 |
| Type | Terminal Block |
| Configuration | 1-wire, 4 x 128 matrix |
| Compatible Models | PXI/PXIe-2532B |
| Connection | Ribbon cable headers |
| Protection | 100 Ohm or 0 Ohm |
| Dimensions | 4.22 x 0.80 x 4.56 in. |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| TB-2640B Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
