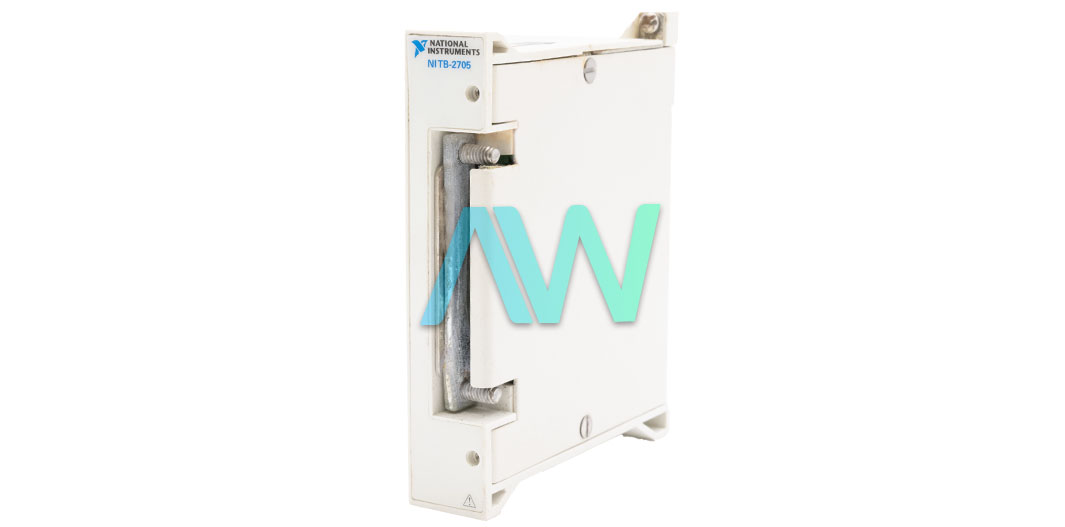

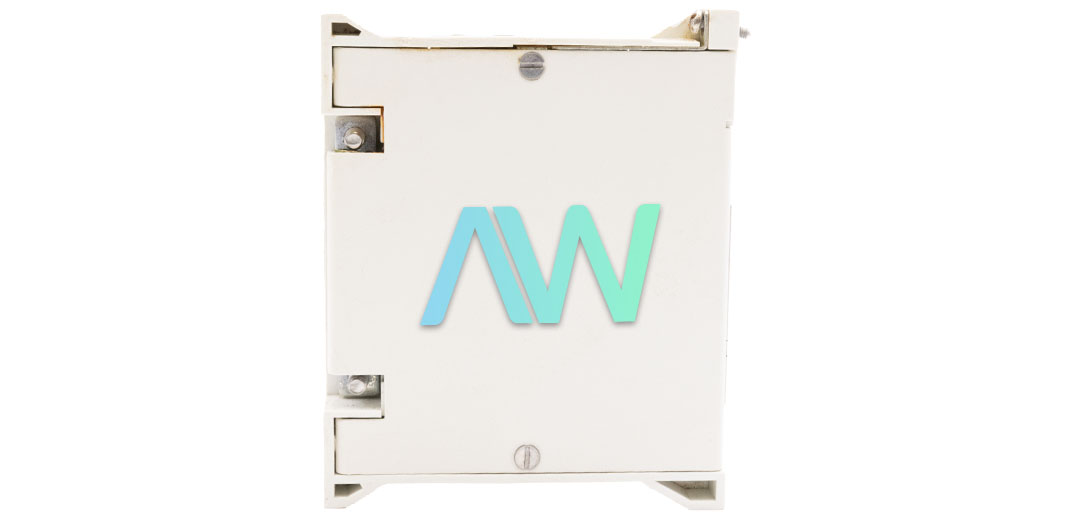

National Instruments TB-2705 Terminal Block
The TB-2705 is a Terminal Block. The TB-2705 is a product of National Instruments. The part number for the NI TB-2705 is 778241-01. The TB-2705 Terminal Block is an accessory for 68-pin PXI E Series devices and S Series devices by National Instruments. The TB-2705 Terminal Block offers easy access to the analog signal inputs. The NI TB-2705 supports digital input/output signals as well. The TB-2705 is available with triggering capabilities. The NI TB-2705 Terminal Block can be accessed with counters/timers’ signals.
The National Instruments TB-2705 Terminal Block is made for rendering connections to the PXI data acquisition modules. The TB-2705 is assembled so it can be joined to the PXI E Series front panels directly. The NI TB-2705 Terminal Block can also be used for connecting waveform generation devices. The TB-2705 enables the connections of analog I/O signals, counter/timer signals, as well as digital input/output signals to NI devices. The NI TB-2705 Terminal Block can function without the use of any additional cables.
The NI TB-2705 Terminal Block is assembled with a printed circuit board. The TB-2705 device is equipped with 62 screw terminals. The NI TB-2705 Terminal Block is also built with a plastic enclosure with a strain relief. The shielded enclosure of the TB-2705 Terminal Block secures input/output wires. The NI TB-2705 Terminal Block supports adequate ground connections for the operating chassis due to the shielded strain-relief.
TB-2705 Obsolete Status has been announced by National Instruments, but the Terminal Block will still be available for purchase and repairs by Apex Waves.
| Model | TB-2705 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778241-01 |
| Type | Terminal Block |
| Compatible Devices | PXI E Series and waveform generation devices |
| Screw Terminals | 62 |
| I/O Connector | One 68-position female connector |
| DImensions | 7.5 by 4.125 by 1.38 in. |
| Warranty | 2-3 Year Warranty |
| TB-2705 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for TB-2705:
National Instruments TB-2705 Frequently Asked Questions
Question: What modules are the TB-2705 compatible with?
Answer: The TB-2705 is a latching screw terminal block made for use with PXI E Series modules.
Question: Does the TB-2705 connect directly to the device?
Answer: Yes, the TB-2705 connects directly to a PXI device.
Question: How many screw terminals does the TB-2705 have?
Answer: The TB-2705 has 16 screw terminals.
