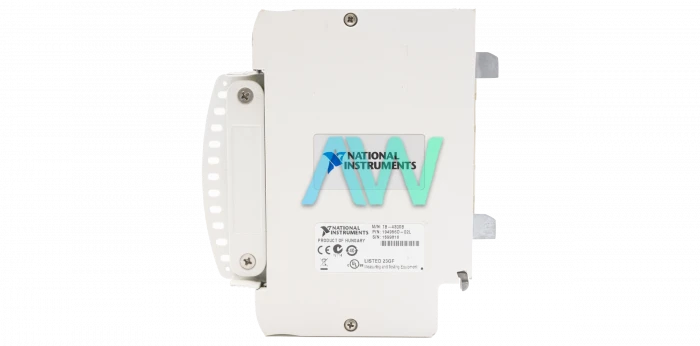

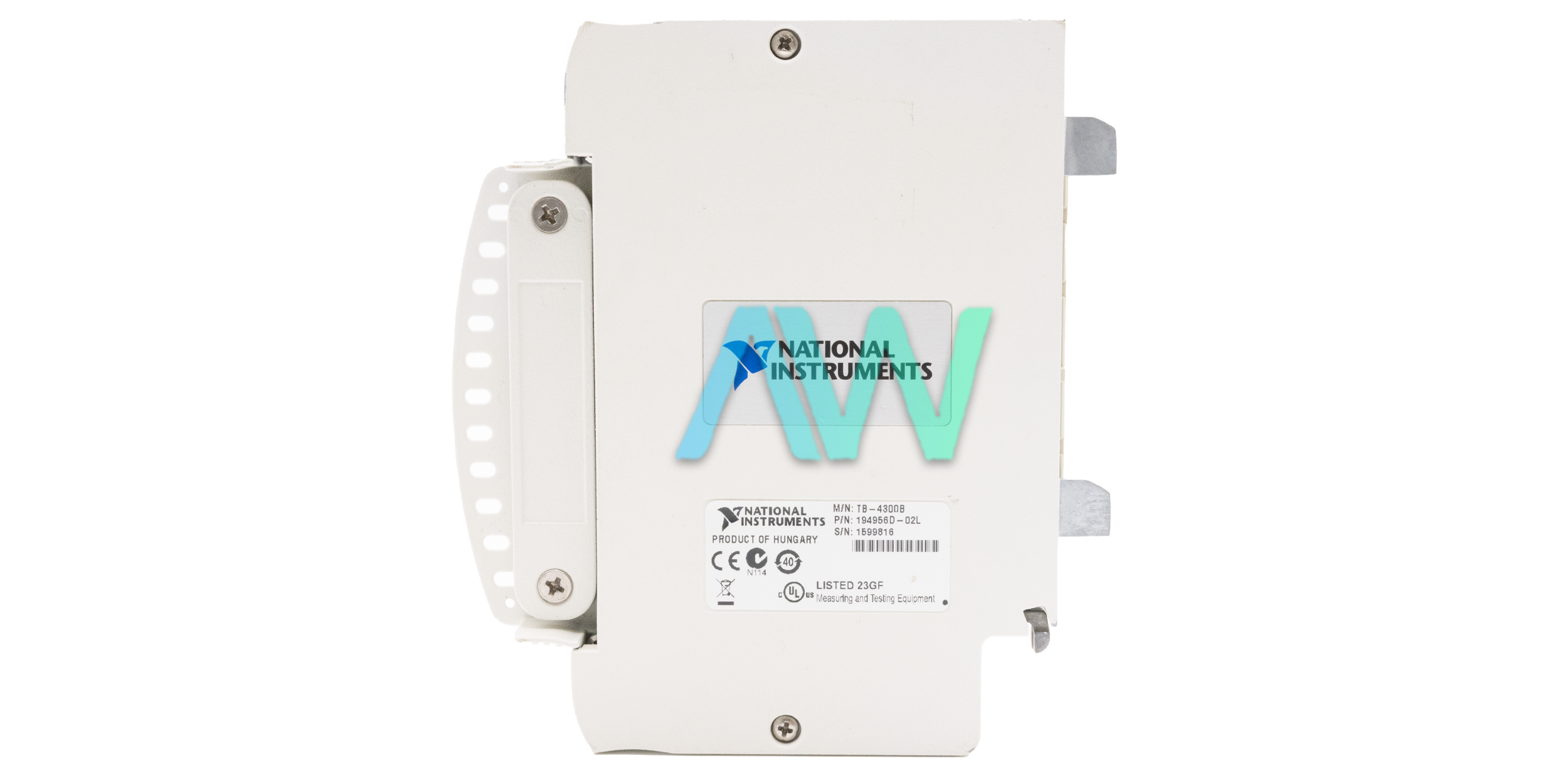

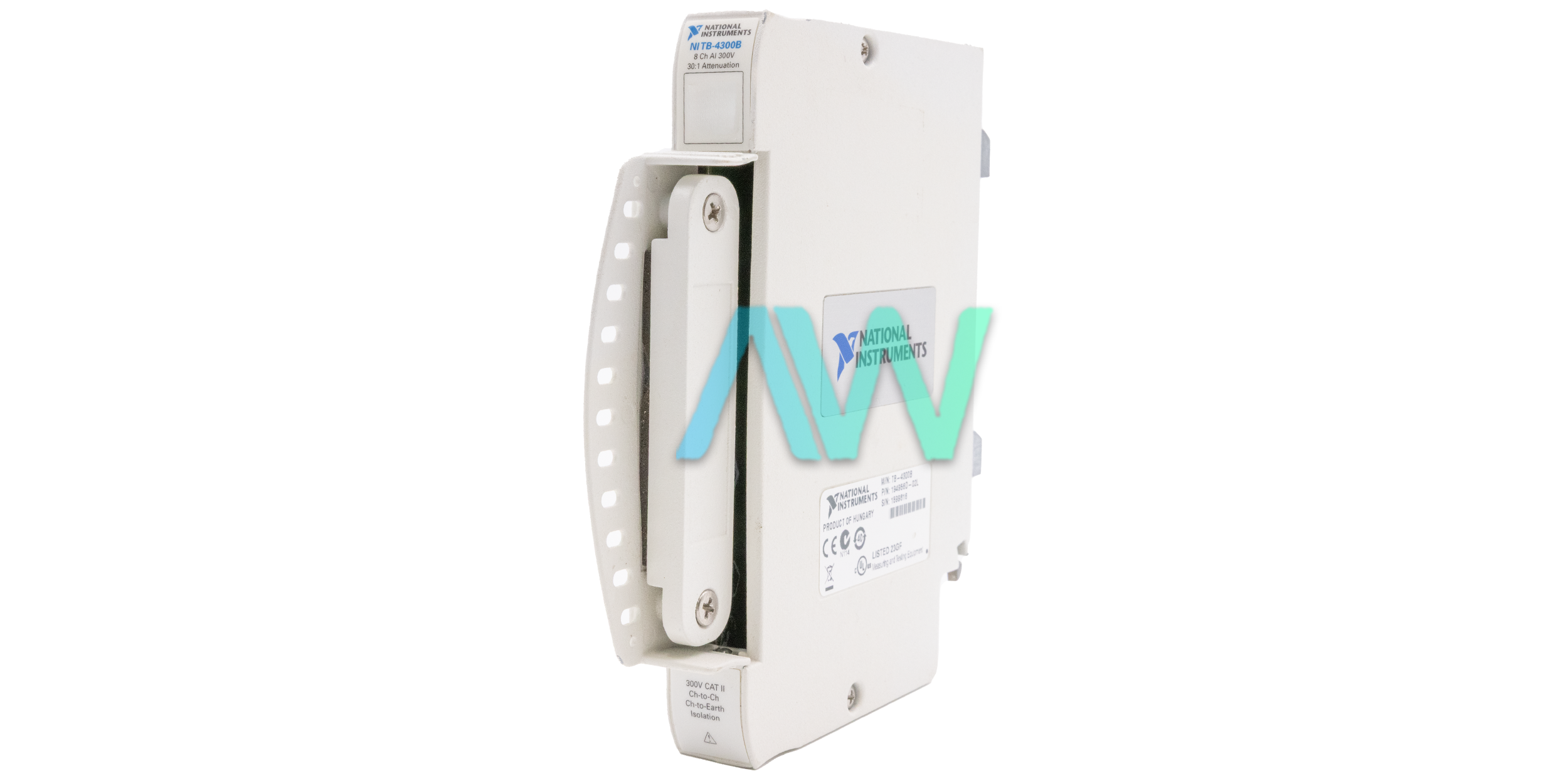

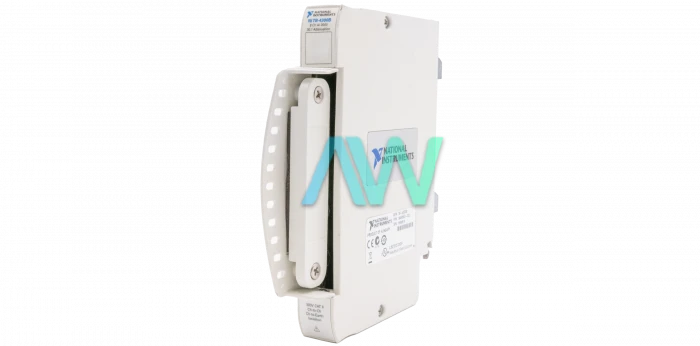

TB-4300B NI Terminal Block | In Stock Ships Today | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

NI TB-4300B Terminal Block

The TB-4300B (part numbers: 781338-02 and 194956-02L) is a Terminal Block manufactured by National Instruments. Designed for use with the PXIe-4300 Analog Input Module, this versatile accessory operates with an attenuation ratio of 30:1 and an input impedance of 1.2 MΩ. NI-DAQmx drivers and LabVIEW application tools can be used to program the NI PXIe-4300 module and the NI TB-4300B to meet the needs of various applications. Equipped with screw terminal wiring, the maximum wiring gauge of the block is 1.31 mm2 (16 AWG).

The NI TB-4300B safeguards against voltage faults with a maximum fault voltage protection of 300 Vpk. The terminal block features input voltage ranges of ±30, 60, 150, and 300 Volts. Designed with an attenuator tolerance of 0.05%, this block is evaluated with a temperature coefficient of 5 ppm/°C for attenuators.

Physically, the NI TB-4300B measures dimensions of 5.10 in x 6.02 in (12.95 cm x 15.28 cm) and weighs a total of 21.8 oz (618 g). The operating environment for the device includes a temperature range of 0 to 55 °C and a noncondensing relative humidity range of 10% to 90%. When not in use, the specifications for the storage environment of the device include an ambient temperature range spanning from -40 °C to 71 °C and a noncondensing relative humidity range of 5% to 95%. These environmental specifications were tested in accordance to the standards of the IEC 60068-2-1, IEC 60068-2-2, and IEC 60068-2-56 specifications.

Designed for indoor use only, it is strictly prohibited to use the TB-4300B Terminal Block for connection with signals or Measurement Categories III/IV. It is recommended by the manufacturer NI to calibrate the terminal block once a year.

Model	TB-4300B
Manufacturer	National Instruments
Part Numbers	781338-02 and 194956-02L
Type	Terminal Block
Compatible With	PXIe-4300
Input	300 V
Calibration Interval	1 Year
Attenuation Ratio	30 to 1
Attenuator Tolerance	0.05%
Screw Terminal Wire Gauge	16 AWG Maximum
Maximum Input Voltage	300 Vpk
Isolation Voltage	300 Vrms
Operating Temp Range	0 °C to 55 °C
Storage Temp Range	-40 °C to 71 °C
Dimensions	5.10 in x 6.02 in (12.95 cm x 15.28 cm)
Weight	21.8 oz (618 g)
Warranty	2-3 Year Warranty
TB-4300B Manual	User Manual and Maintenance Manual Available for Download
Pricing	Request a Quote for More Information

Associated part numbers for TB-4300B:

NI TB-4300B Frequently Asked Questions

Question: What is the maximum input voltage of the TB-4300B?

Answer: The maximum input voltage of the device is 300 V

Question: What is the attentuator tolerance of the TB-4300B?

Answer: The tolerance of this Terminal Block is 0.05%

Question: What is the input voltage range of the TB-4300B?

Answer: The voltage range measures from ±30, 60, 150, 300 V

Question: If needed, how can I clean the Terminal Block?

Answer: The TB-4300B can be cleaned with a soft and nonmetallic brush. Make sure that it is completely dry and free of contaminents before further use.
