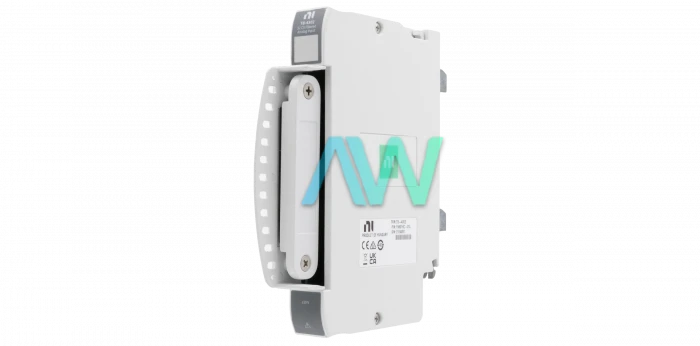

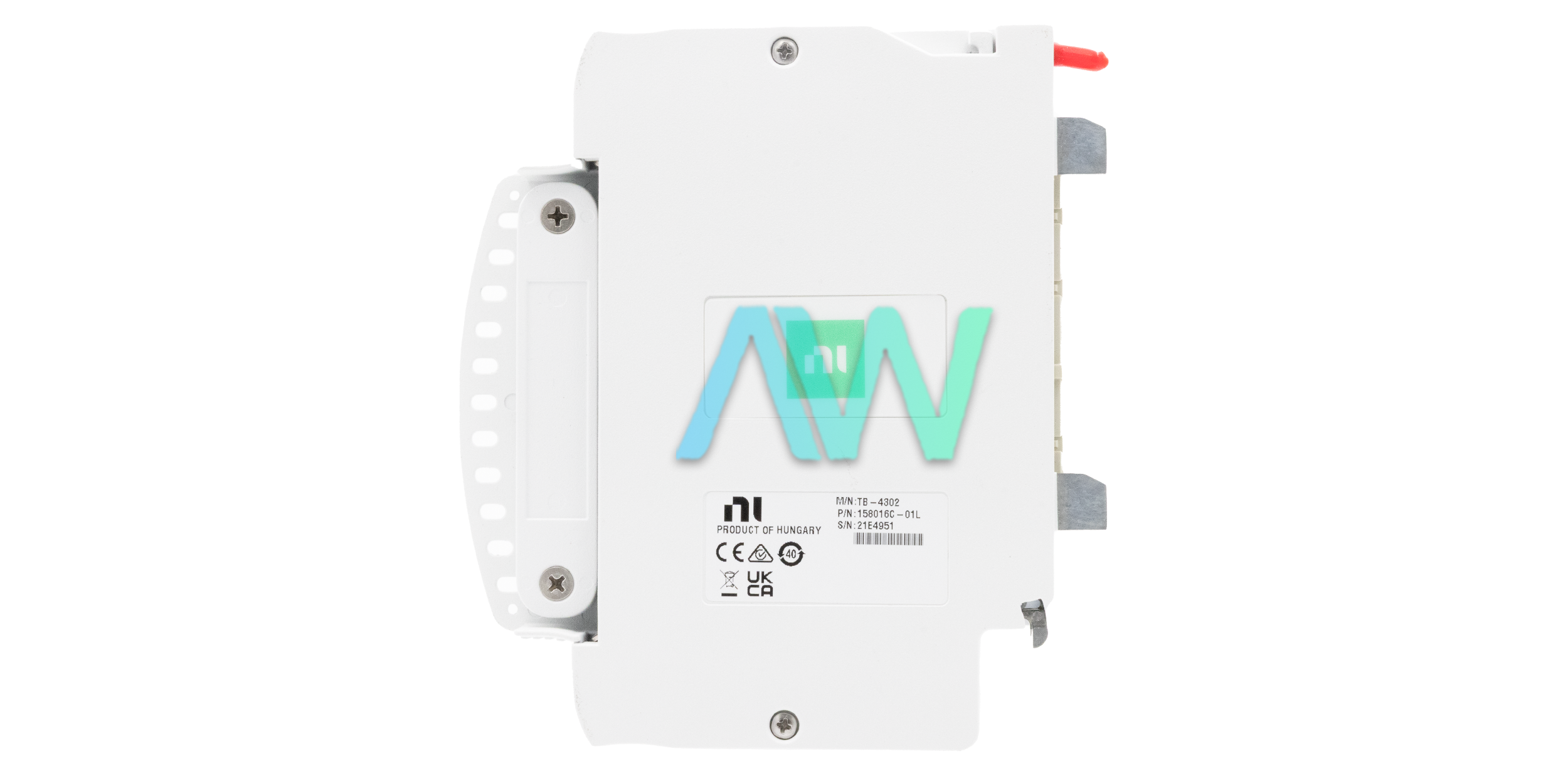

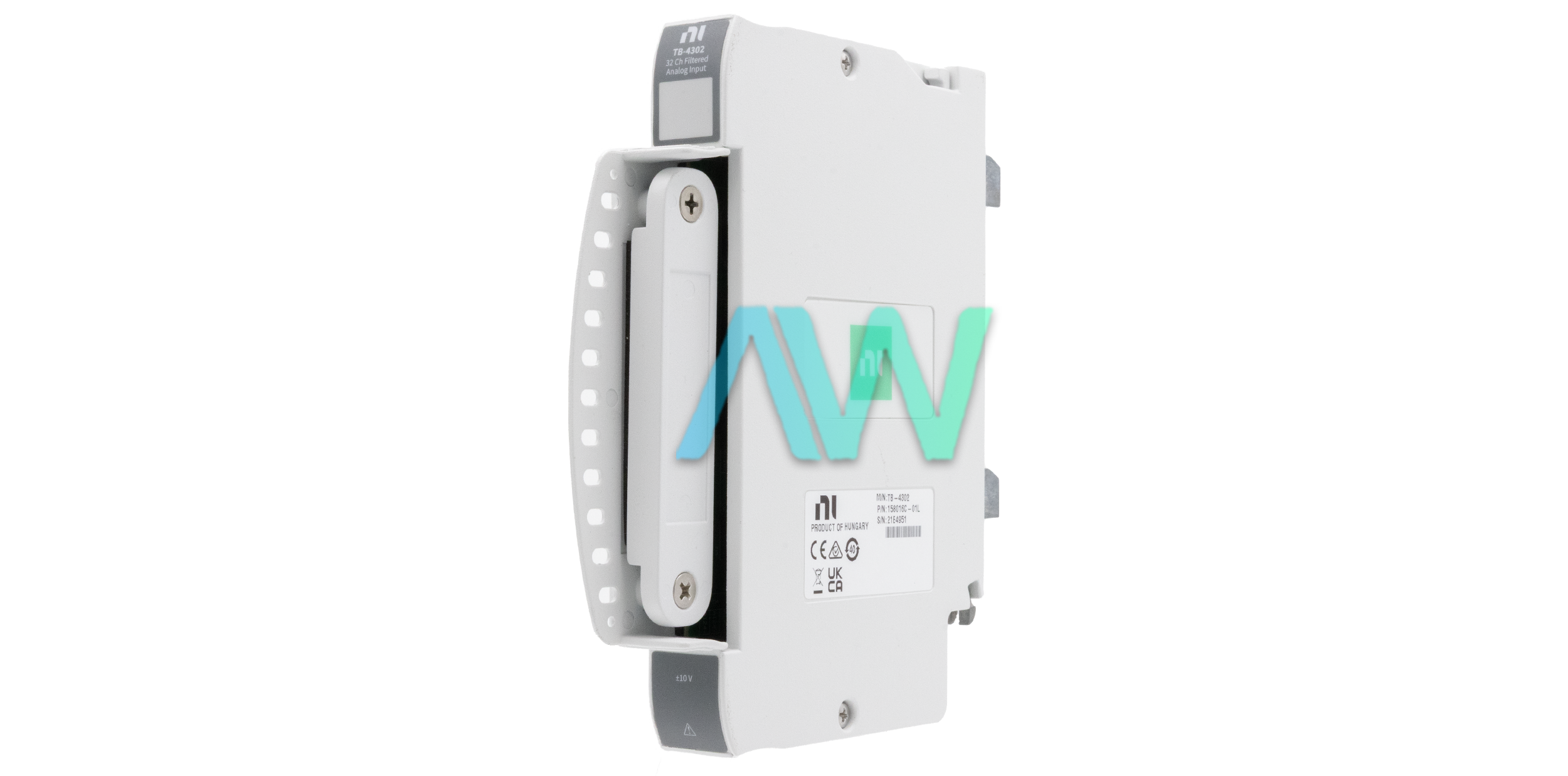

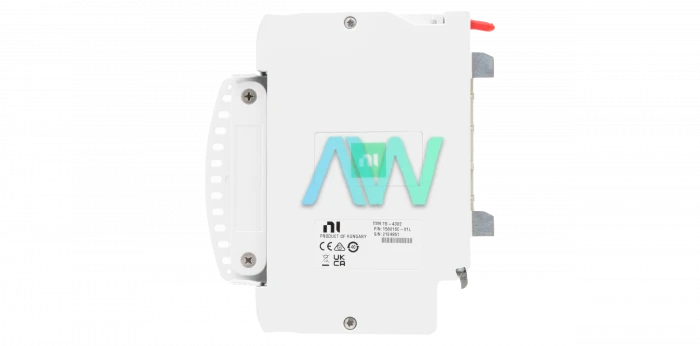

NI TB-4302 Terminal Block

Featured with cold-junction compensation, the TB-4302 (Part Number: 783869-01) is a Terminal Block. This Terminal Block is designed to be coupled with the simultaneously filtered PXIe-4302/4303 Data Acquisition Modules by National Instruments. These modules have 32 channels and can be connected to the NI TB-4302. You can connect a single channel, multiple channels, or all the channels of the host PXIe module through the TB-4302. This Terminal Block does not require an external power supply to operate.

The National Instruments PXIe-4302/4303 Data Acquisition Modules are offered with the application software called NI-MAX. NI-MAX can recognize the simultaneous filtered terminal blocks. The NI TB-4302 weighs around 1 lb. and comes with a CJC accuracy of up to 1.5 °C. It has an analog voltage of 10 V maximum. The NI-TB-4302 has a 96-Pin Female DIN that connects to a 82-Pin Female Screw Terminal,

This Terminal Block does not need to be calibrated. The NI TB-4302 Terminal Block offers an easy means of routing signals from various external sensors or devices to a Data Acquisition Module.

ModelTB-4302
ManufacturerNI
Part Number783869-01
TypeTerminal Block
Compatible ModelsPXIe-4302 and PXIe-4303
Calibration IntervalN/A
Analog Voltage10 V max
CJC Accuracy1.5 degrees C
Measurement CategoryI
Weight1 lb.
WarrantyThree Year Warranty
TB-4302 ManualUser Manual and Maintenance Manual Available for Download
PricingContact a Sales Representative for a quote.

Associated part numbers for TB-4302:

NI TB-4302 Frequently Asked Questions



Question: What makes the TB-4302 unique?



Answer: The TB-4302 includes a temperature sensor that measures the terminal block's temperature in order to conduct cold-junction compensation when calculating thermocouple temperature measurement.



Question: Does the TB-4302 need to be calibrated?



Answer: No, the TB-4302 does not need to be calibrated, though the TB-4302C should be calibrated annually.



Question: What is the size of the screw terminal wire gauge of the TB-4302?



Answer: The screw terminal wire gauge is 1.5 mm2 maximum (16 AWG)
