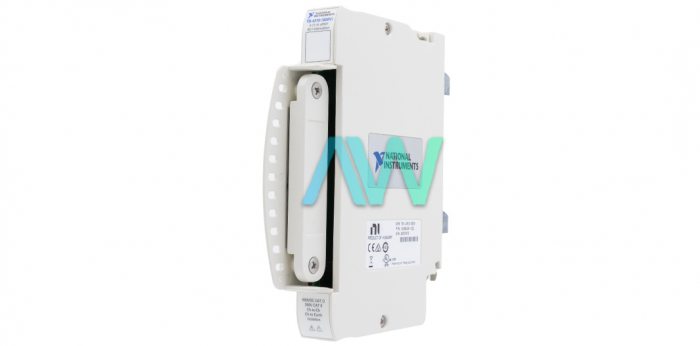

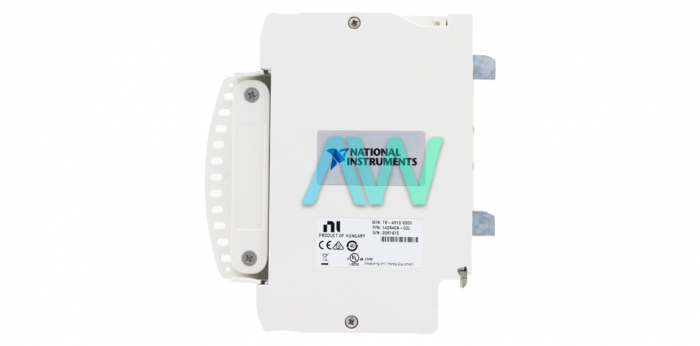

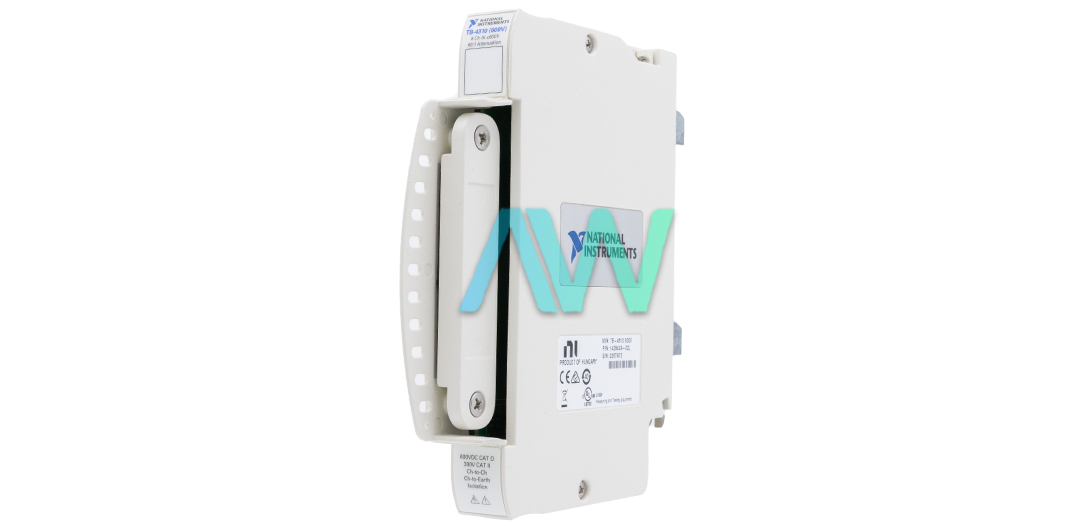

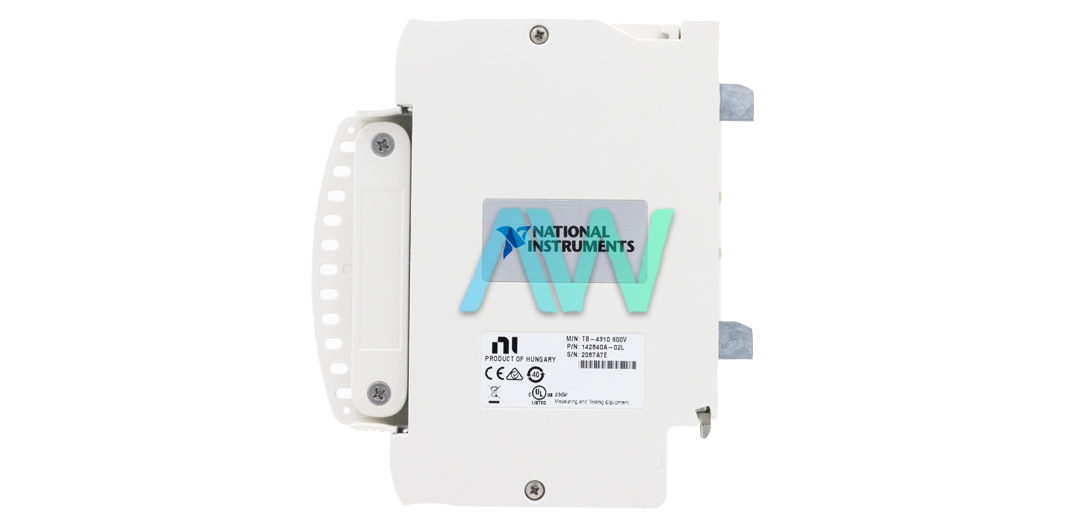

NI TB-4310 Terminal Block
The NI TB-4310 (Part Numbers: 142840-01L and 142840-02L) is a 600V Terminal Block that can be deployed through the front panel connector of the PXIe-4310 which is a 16-bit, 8-channel Analog Input Module. This accessory is designed to be installed in a horizontal orientation and offers direct connectivity of different external signals or devices with the host module. Through a NI TB-4310 Terminal Block and other accessories, you will be able to construct a system comprising of devices with different I/O connectors.
The TB-4310 is a Measurement Category O device. The maximum safe voltage limits are 600 VDC (AI+ to AI-) and ±11 V (AI+ to AI-). This Terminal Block is designed to offer a maximum channel to channel isolation voltage of 600 VDC/Vpk or 300 Vrms. The rated transient overvoltage value is 2,500 Vpk. It is important to note that the NI TB-4310 Terminal Block is not designed to be powered from any external sources or main utility outlets.
| Model | TB-4310 |
|---|---|
| Manufacturer | NI |
| Part Numbers | 142840-01L and 142840-02L |
| Type | Terminal Block |
| Compatible Model | PXIe-4310 |
| Calibration Interval | N/A |
| Maximum Voltage | 10 V or 600 V (based on part number) |
| INL Error | 51 ppm of range |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| TB-4310 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for TB-4310:
