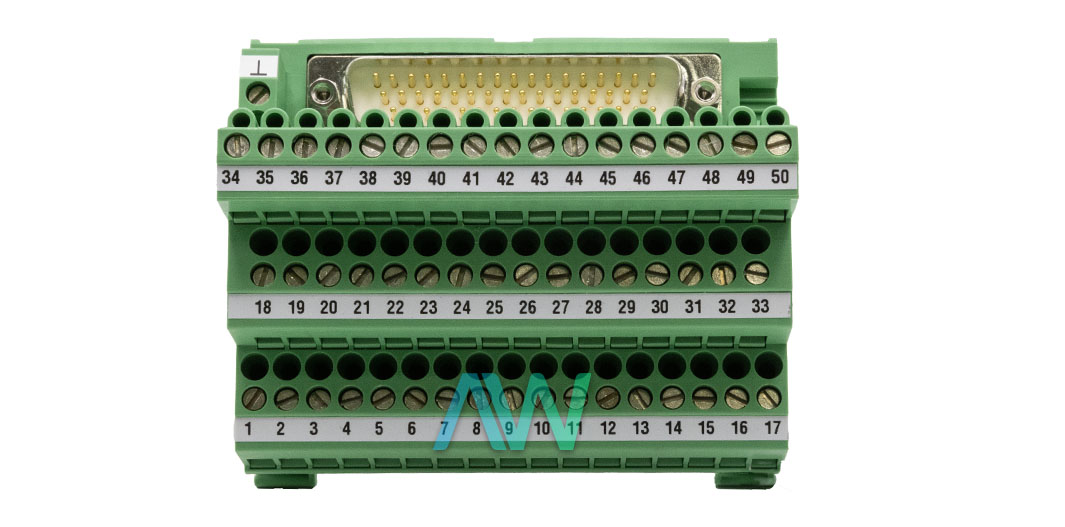

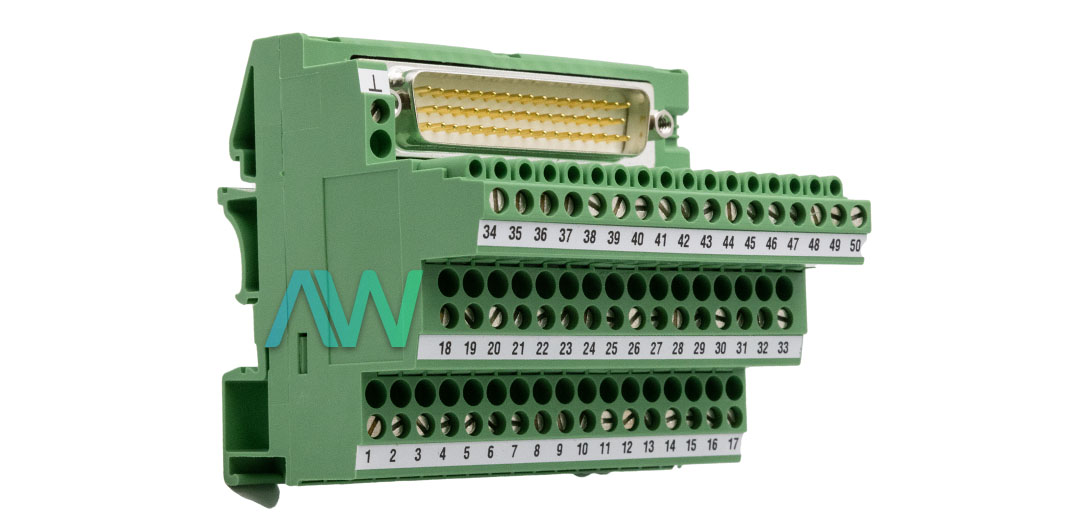

NI TBX-50 Terminal Block
The TBX-50 (Part Number: 779305-01) is a 50-Pin, Male D-SUB Terminal Block from National Instruments. In addition, an enhanced version of this product known as TBX-50B (Part Number: 782866-01) is available on the market. The NI TBX-50 Terminal Block is designed to accommodate various types of cables that can be terminated to 50-pin D-SUB cables. Through this Terminal Block, you will be able to expose several switch module connections to screw terminals. Thus, the NI TBX-50 can help you with simplification of your test, control, or monitoring system.
The TBX-50 can easily be mounted on a DIN-rail and can be integrated into an existing enclosure or rack. This accessory supports various National Instruments cable assemblies including DIN60, LFH200, and LHF160. The rated current and voltage for this accessory are 2.5 A and 150 V respectively. This Terminal Block comes with a 50-pin DSUB male connector and a probe socket as well.
| Model | TBX-50 |
|---|---|
| Manufacturer | NI |
| Part Number | 779305-01 |
| Type | Terminal Block |
| Mounting Method | DIN Rail |
| Maximum Voltage | 125 V |
| Maximum Current | 2.5 A |
| Positions | 50 |
| Connector Type | 50-Pin, D-SUB Male |
| Warranty | 2-3 Year Warranty |
| TBX-50 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for TBX-50:
NI TBX-50 Frequently Asked Questions
Question: What are the dimensions of the TBX-50 Terminal Block?
Answer: The device measures 71 mm in length and 86 mm in width.
Question: Why is the documentation for the Terminal Block archived?
Answer: The TBX-50 was replaced with the TBX-50B by National Instruments.
Question: What type of connections does the TBX-50 have?
Answer: The block has screw terminal connections.
